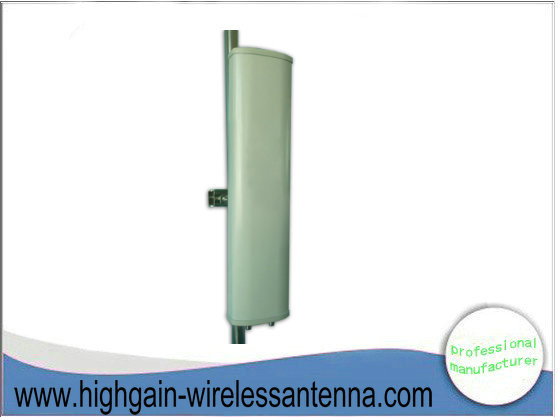

Outdoor Dual Polarized Directional Antenna
Outdoor Dual Polarized Directional Antenna
Specifications
Product Name :
Dual Polarized Directional Antenna
Feature :
High Gain,Optimized dimension
Radome material :
UPVC
Radome color :
Gray
Application :
2.4GHz ISM applications
Gain(DBi) :
2×15
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSDP-2400-15A
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description


Outdoor Wireless Signal Dual Polarization Antenna Panel 15 DBi 2500MHZ


Feature:
● High Gain
● Full day for working
● Optimized dimension
● Dual Polarization


Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system


Specification

RSDP-2400-15A

Electric Specifications

Frequency rang

2400-2500

Polarization

±45°

Gain(DBi)

2×15

Beamwidth(0°)

H:90 V:15

F/B ratio(DB)

≥23

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

200

Lightning protection

DC ground

Mechanical Specifications

Connector model

2×N Female

antenna size (mm)

510*114*54

Packing size(mm)

540*125*105

Antenna weight (kg)

1.8

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～15

Working Temperature(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

35～75



Antenna details :



















Application Example :




Install demonstration




View of us ;




























































Product tags

outdoor directional antenna

,

outdoor directional wifi antenna

,

wifi directional antenna outdoor
