2400 MHZ Outdoor Signal double Polarization Antenna Wireless Panel 15 DBi
2400 MHZ Outdoor Signal double Polarization Antenna Wireless Panel 15 DBi
2400 MHZ Outdoor Signal double Polarization Antenna Wireless Panel 15 DBi
2400 MHZ Outdoor Signal double Polarization Antenna Wireless Panel 15 DBi
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSDP-2400-15A
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Dual Polarized Directional Antenna
Feature :
High Gain,Optimized dimension
Radome material :
UPVC
Radome color :
Gray
Application :
2.4GHz ISM applications
Gain(DBi) :
2×15
Description


2400 MHZ Outdoor Signal double Polarization Antenna Wireless Panel 15 DBi


Feature:
● High Gain
● Full day for working
● Optimized dimension
● Dual Polarization


Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system


Specification

RSDP-2400-15A

Electric Specifications

Frequency rang

2400-2500

Polarization

±45°

Gain(DBi)

2×15

Beamwidth(0°)

H:90 V:15

F/B ratio(DB)

≥23

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

200

Lightning protection

DC ground

Mechanical Specifications

Connector model

2×N Female

antenna size (mm)

510*114*54

Packing size(mm)

540*125*105

Antenna weight (kg)

1.8

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～15

Working Temperature(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

35～75

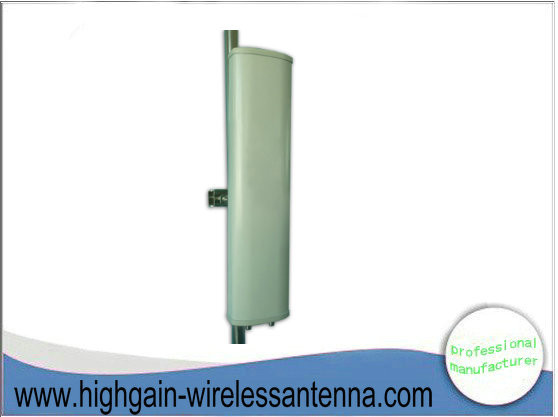

Antenna details :



















Application Example :

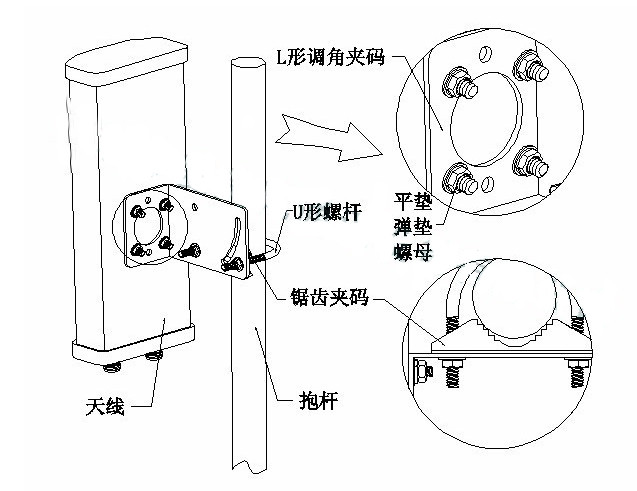

Install demonstration




View of us ;
