CDMA800 / GSM900 dual polarization antenna for wireless 17 DBi 806 MHz - 960 MHz
CDMA800 / GSM900 dual polarization antenna for wireless 17 DBi 806 MHz - 960 MHz
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSDP-900-17
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Dual Polarized Directional Antenna
Feature :
High Gain,Optimized dimension
Radome material :
UPVC
Radome color :
Gray
Application :
CDMA800/GSM900 Mobile System
Frequency rang :
806-960
Description


CDMA800 / GSM900 dual polarization antenna for wireless 17 DBi 806 MHz - 960 MHz

Feature:
● High Gain
● Full day for working
● Optimized dimension
● Dual polarization


Application:
● Repeater station system
● CDMA800/GSM900 Mobile System
●Wireless telecommunication &Data transmission system


Specification

RSDP-900-17

Electric Specifications

Frequency rang

806-960

Polarization

±45°

Gain(DBi)

2×17

Beamwidth(0°)

H:65 V:12

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

400

Mechanical Specifications

Connector model

2×N Female

antenna size (mm)

1300*280*80

Packing size(mm)

Antenna weight (kg)

8.1

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Working Temperatu(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

50～75

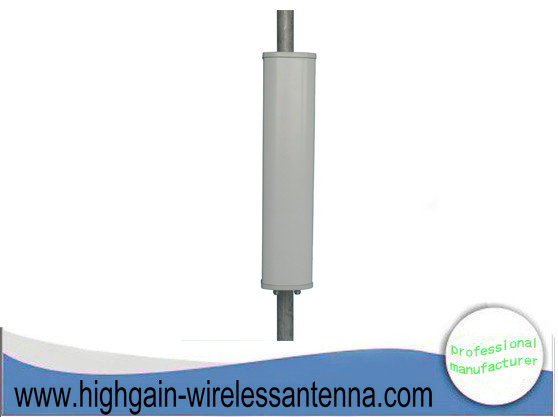

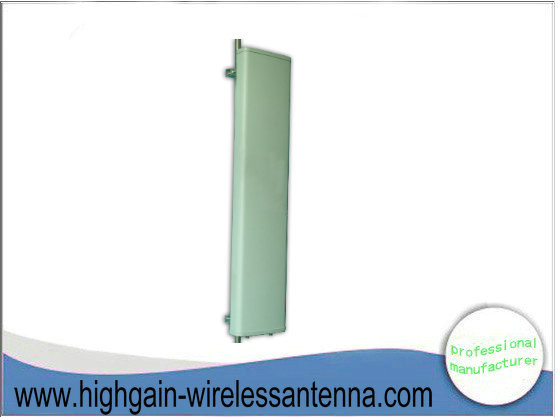

Antenna details :



















Application Example :




Install demonstration




View of us ;
