High Performance Outdoor Panel Directional WIFI Antenna With N Female Connector
High Performance Outdoor Panel Directional WIFI Antenna With N Female Connector
High Performance Outdoor Panel Directional WIFI Antenna With N Female Connector
High Performance Outdoor Panel Directional WIFI Antenna With N Female Connector
High Performance Outdoor Panel Directional WIFI Antenna With N Female Connector
High Performance Outdoor Panel Directional WIFI Antenna With N Female Connector
Specifications
Model Number :
RSXW-2400-14C
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

High Performance Outdoor Panel Directional WIFI Antenna With N Female Connector

Feature:
● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference

Application:
● 2.4GHZ WLAN System
● 2.4GHZ ISM application
● WIFI Telecommunication system
● Wireless AP , wireless adapter

Specification

Model NO

RSW-2400-14C

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

14

beam width -°

H:30 V:30

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

235*195*35

Antenna weight-kg

0.58

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

hold in the pole

Antenna details :

Application Example :

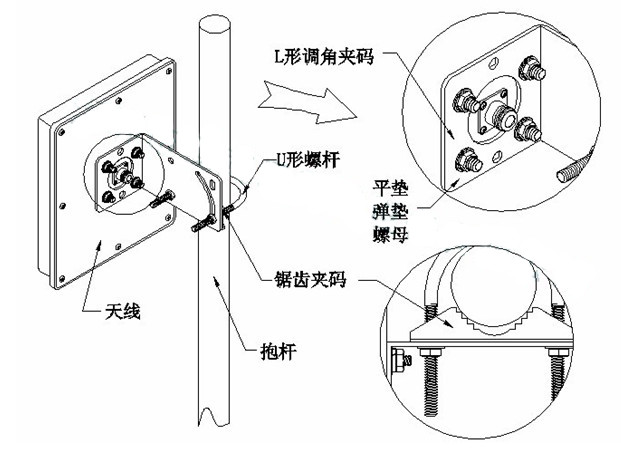

Install demonstration

View of us ;
