2300 - 2700 MHz High Frequency 14 dBi WIMAX Directional Panel Antenna Pole / Wall Mount
2300 - 2700 MHz High Frequency 14 dBi WIMAX Directional Panel Antenna Pole / Wall Mount
2300 - 2700 MHz High Frequency 14 dBi WIMAX Directional Panel Antenna Pole / Wall Mount
2300 - 2700 MHz High Frequency 14 dBi WIMAX Directional Panel Antenna Pole / Wall Mount
2300 - 2700 MHz High Frequency 14 dBi WIMAX Directional Panel Antenna Pole / Wall Mount
2300 - 2700 MHz High Frequency 14 dBi WIMAX Directional Panel Antenna Pole / Wall Mount
Specifications
Model Number :
RSW-2300-2700-14
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

2300 - 2700 MHz High Frequency 14 dBi Directional Panel Antenna Pole / Wall Mount


Feature:

● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference

● Good appearance
● Durable, corrosion resistance


Application:
● 2.4GHZ WLAN System
● WIMAX LTE 4G application
● WIFI Telecommunication system

Specification

Model NO

RSW-2300-2700-14

Electric Spec

Frequency rang-MHz

2300-2700

Bandwidth -MHz

83

Gain -dBi

14

beam width -°

H:65 V:30

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

SMA male or others

Mechanical Specification

Size -mm

210*180*45

Antenna weight-kg

0.58

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

mount on the wall or hold in the pole

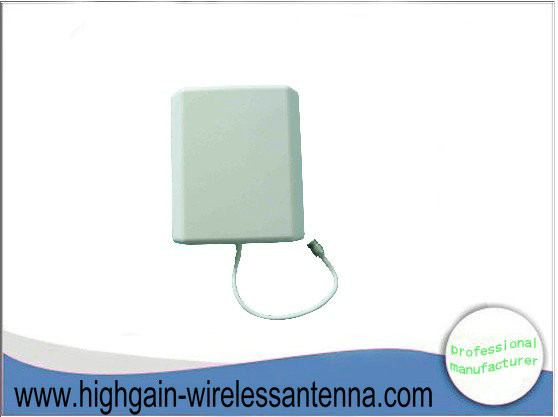

Antenna details :

Application Example :

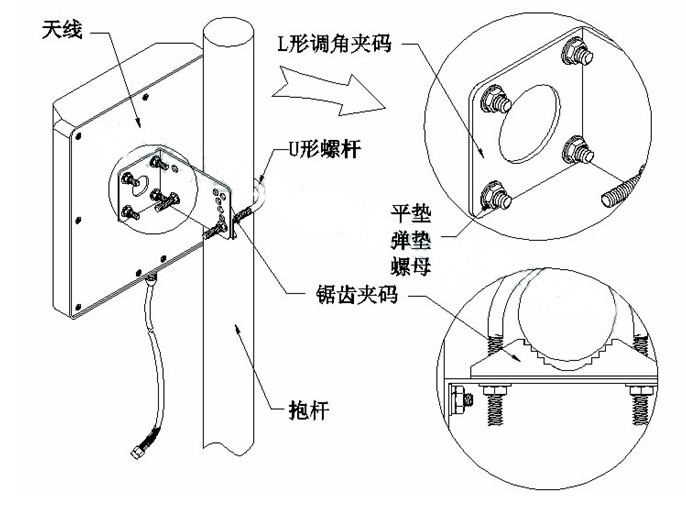

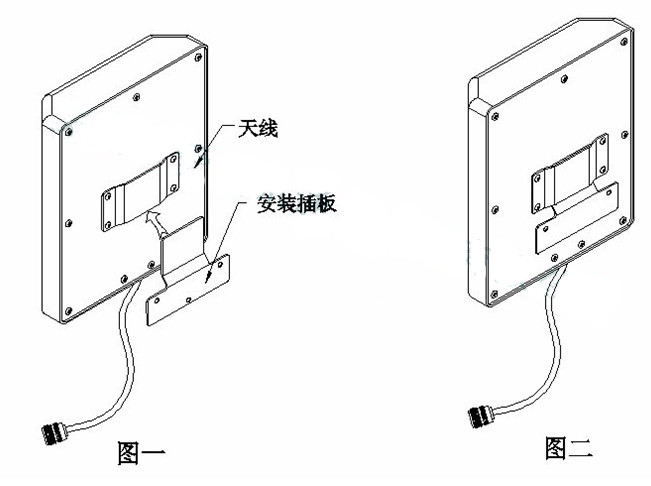

Install demonstration

View of us ;
