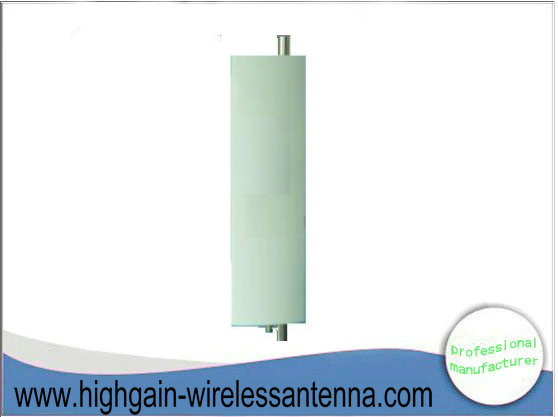

2400 - 2483 MHz 16 DBi 2.4GHZ Directional flat Panel Antenna For Wireless AP / Adapter
2400 - 2483 MHz 16 DBi 2.4GHZ Directional flat Panel Antenna For Wireless AP / Adapter
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSW-2400-16
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

2400 - 2483 MHz 16 DBi 2.4GHZ Directional flat Panel Antenna For Wireless AP / Adapter

Application:

● WIFI Telecommunication system
● Wireless AP , wireless adapter

● 2.4GHZ WLAN System
● 2.4GHZ ISM application

● Public wireless hot signal coverage
● Base station &Repeater station system

Feature:
● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference

Specification

RSW-2400-16

Electric Specifications

Frequency rang

2400-2483

Bandwidth -MHz

83

Gain(DBi)

16

Beamwidth(0°)

H:65 V:15

Input Impedance(Ω)

50

VSWR

≤1.5

Polarization

Vertical

Max power(W)

100

Lightning protection

DC ground

Connector model

N Female

Mechanical Specifications

Antenna size (mm)

454*134*30

Antenna weight (kg)

1.9

Radome material

ABS

Working Temperature(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

50～75
