2.4GHZ WLAN Wireless Wide Band Directional Panel Antenna 83 Bandwidth 14 dBi
2.4GHZ WLAN Wireless Wide Band Directional Panel Antenna 83 Bandwidth 14 dBi
2.4GHZ WLAN Wireless Wide Band Directional Panel Antenna 83 Bandwidth 14 dBi
2.4GHZ WLAN Wireless Wide Band Directional Panel Antenna 83 Bandwidth 14 dBi
2.4GHZ WLAN Wireless Wide Band Directional Panel Antenna 83 Bandwidth 14 dBi
2.4GHZ WLAN Wireless Wide Band Directional Panel Antenna 83 Bandwidth 14 dBi
Specifications
Model Number :
RSW-2400-14B
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

2.4GHZ WLAN Wireless Wide Band Directional Panel Antenna 83 Bandwidth 14 dBi

Feature:

● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference
● Good appearance
● Durable, corrosion resistance

Application:
● 2.4GHZ WLAN System
● 2.4GHZ ISM application
● WIFI Telecommunication system
● Wireless AP , wireless adapter

Specification

Model NO

RSW-2400-14B

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

14

beam width -°

H:65 V:25

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

SMA Male or others

Mechanical Specification

Size -mm

225*195*47

Antenna weight-kg

0.45

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

hold in the pole

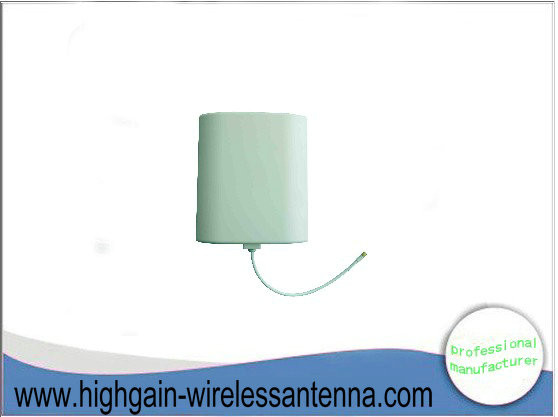

Antenna details :

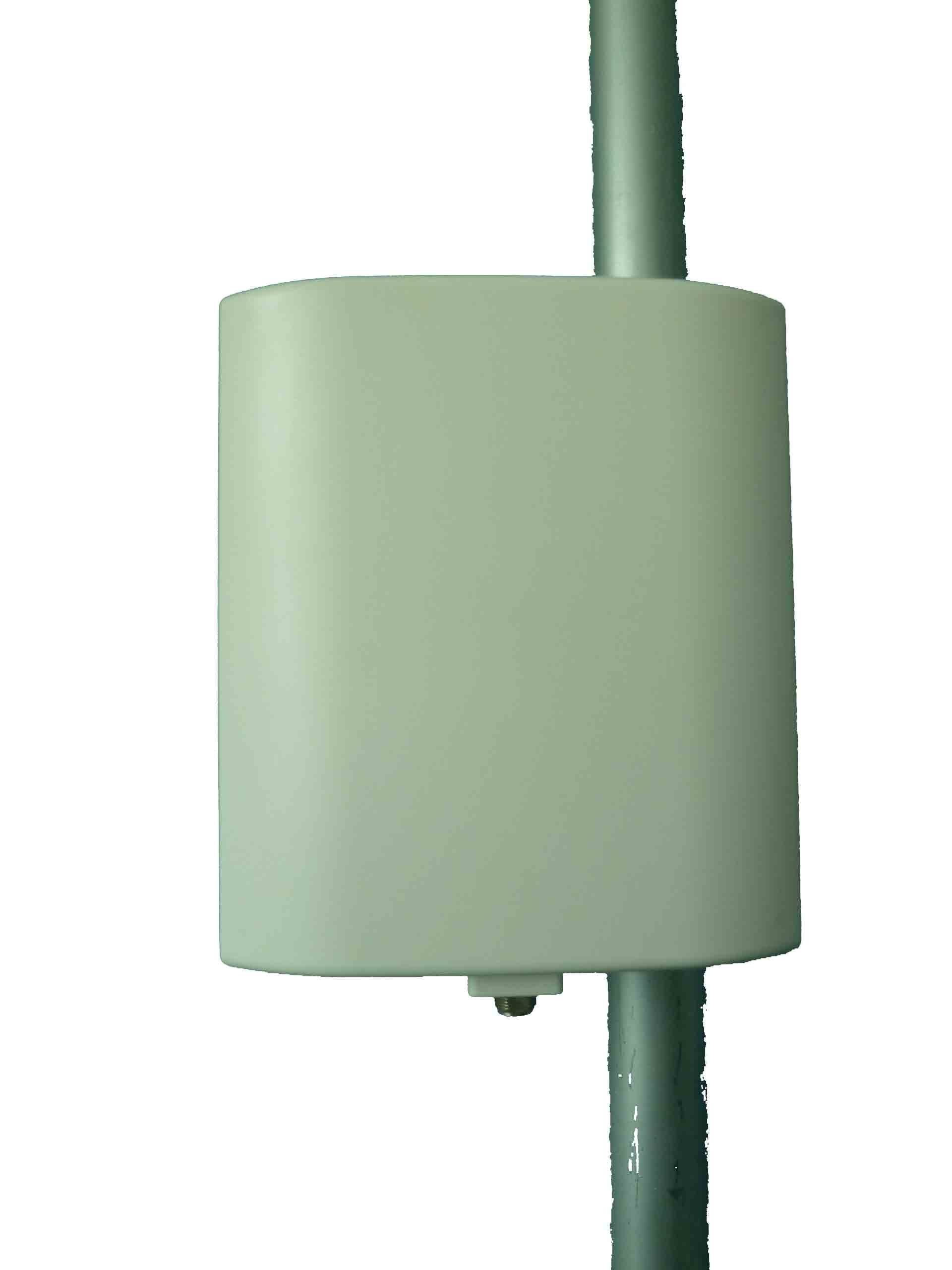

Application Example :

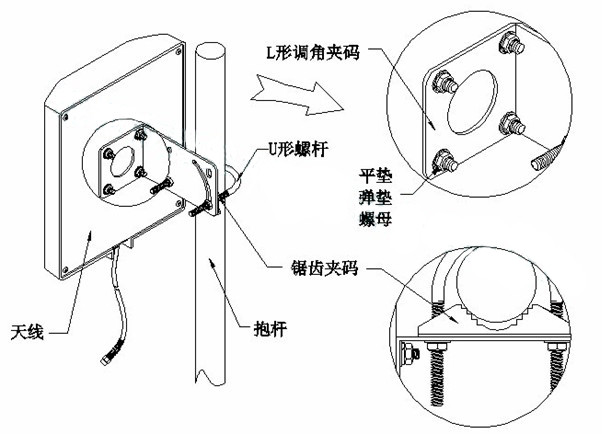

Install demonstration

View of us ;
