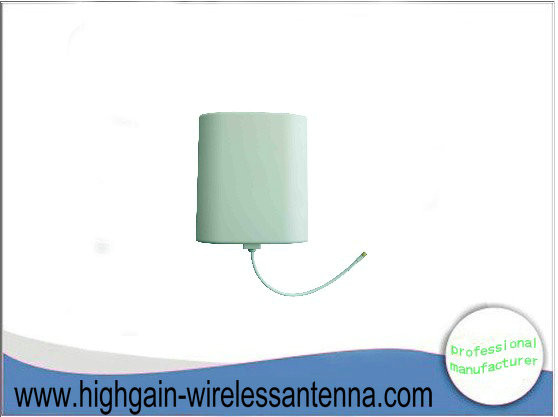

High Band Hi-Gain Directional Wireless Antenna Panel Vertical 25° With SMA Male Connector
High Band Hi-Gain Directional Wireless Antenna Panel Vertical 25° With SMA Male Connector
Specifications
Model Number :
RSW-1710-2170-14A
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

High Band Hi-Gain Directional Wireless Antenna Panel Vertical 25° With SMA Male Connector

Feature:
● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference

Application:
● WCDMA/PCS/3G System
● Wireless communication and data transmission system

Specification

Model NO

RSW-1710-2170-14A

Electric Spec

Frequency rang-MHz

1710-2170

Bandwidth -MHz

460

Gain -dBi

14

beam width -°

H:65 V:25

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

SMA Male or others

Mechanical Specification

Size -mm

225*195*47

Antenna weight-kg

0.45

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

hold in the pole

Antenna details :

Application Example :

Install demonstration

View of us ;
