WCDMA Omni-directional Repeater / Base Station Fiberglass Antenna 8 dBi 2010 - 2170 MHz

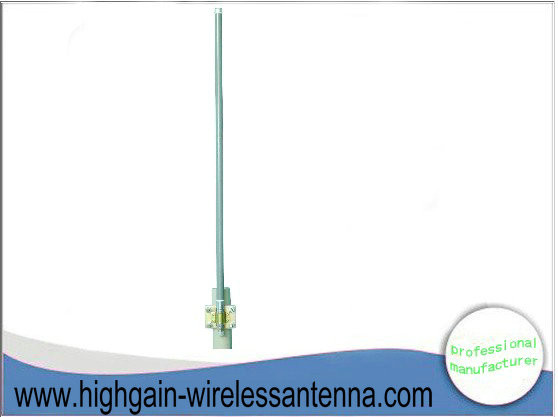

WCDMA Omni-directional Repeater / Base Station Fiberglass Antenna 8 dBi 2010 - 2170 MHz
Specifications
Model Number :
RSF-2010-2170-8
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

WCDMA Omni-directional Repeater / Base Station Fiberglass Antenna 8 dBi 2010 - 2170 MHz

Application:


● WCDMA telecommunication system
● Repeater & Base station system

Feature:
● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR,Strongly Anti-interference

Specification

Model NO

RSF-2010-2170-8

Electric Spec

Frequency rang-MHz

2010～2170

Bandwidth -MHz

160

Gain -dBi

8

beam width -°

H:360 V:17

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

Φ25*650

Antenna weight-kg

0.6

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

gray

Mounting way

hold in the pole

Antenna details :

Application Example :

Install demonstration

View of us ;
