806 - 960 MHz Wide Band Omni Fiberglass CDMA800 / GSM900 Mobile Station Antenna
806 - 960 MHz Wide Band Omni Fiberglass CDMA800 / GSM900 Mobile Station Antenna
Specifications
Model Number :
RSF-900-8
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

806 - 960 MHz Wide Band Omni Fiberglass CDMA800 / GSM900 Mobile Station Antenna

Application:
● CDMA800/GSM900 mobile system
● Repeater antenna ,station antenna
● Point to point & Multipoint system

Feature:
● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR,Strongly Anti-interference

Specification

Model NO

RSF-900-8

Electric Spec

Frequency rang-MHz

806～960

Bandwidth -MHz

154

Gain -dBi

8

beam width -°

H:360 V:17

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

Φ25*900

Antenna weight-kg

0.8

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

gray

Mounting way

hold in the pole

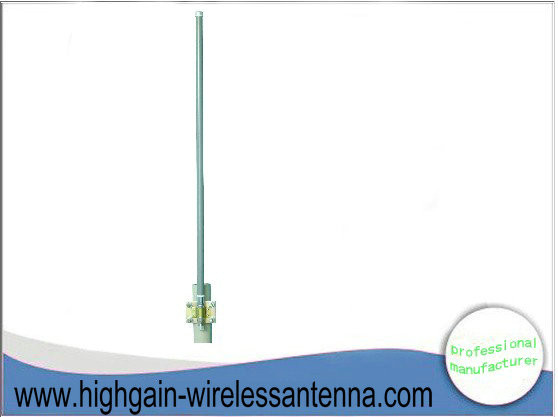

Antenna details :

Application Example :

Install demonstration
