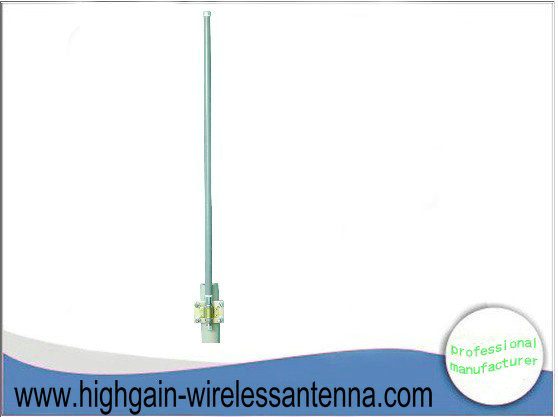

2400 - 2483 MHz 8 dBi Omni Fiberglass High Gain Wireless Antenna For 2.4 GHz WLAN System
2400 - 2483 MHz 8 dBi Omni Fiberglass High Gain Wireless Antenna For 2.4 GHz WLAN System
Specifications
Model Number :
AMXF-2400-8
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

2400 - 2483 MHz 8 dBi Omni Fiberglass High Gain Wireless Antenna For 2.4 GHz WLAN System

Feature:

● Durable, corrosion resistance
● Full day for working ,waterproof
● Good appearance
● Optimized dimension
● High Gain, Lower VSWR,Strongly Anti-interference

Application:
● 2.4 GHz WLAN System
● WIFI telecommunication system
● Point to Multipoint applications
● Wireless AP , wireless adapter

Specification

Model NO

AMXF-2400-8

Electric Spec

Frequency rang-MHz

2400～2483

Bandwidth -MHz

83

Gain -dBi

8

beam width -°

H:360 V:17

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

Φ20*800

Antenna weight-kg

0.5

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

gray

Mounting way

hold in the pole

Antenna details :

Application Example :

Install demonstration

View of us ;
