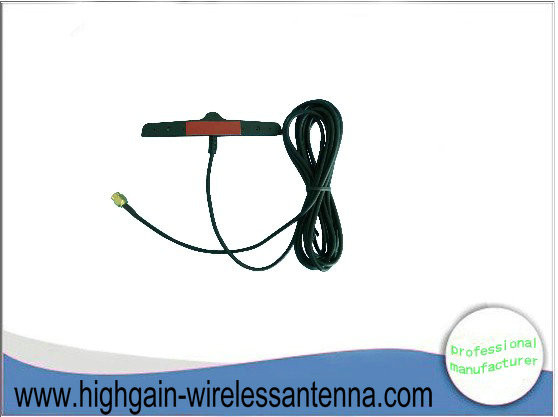

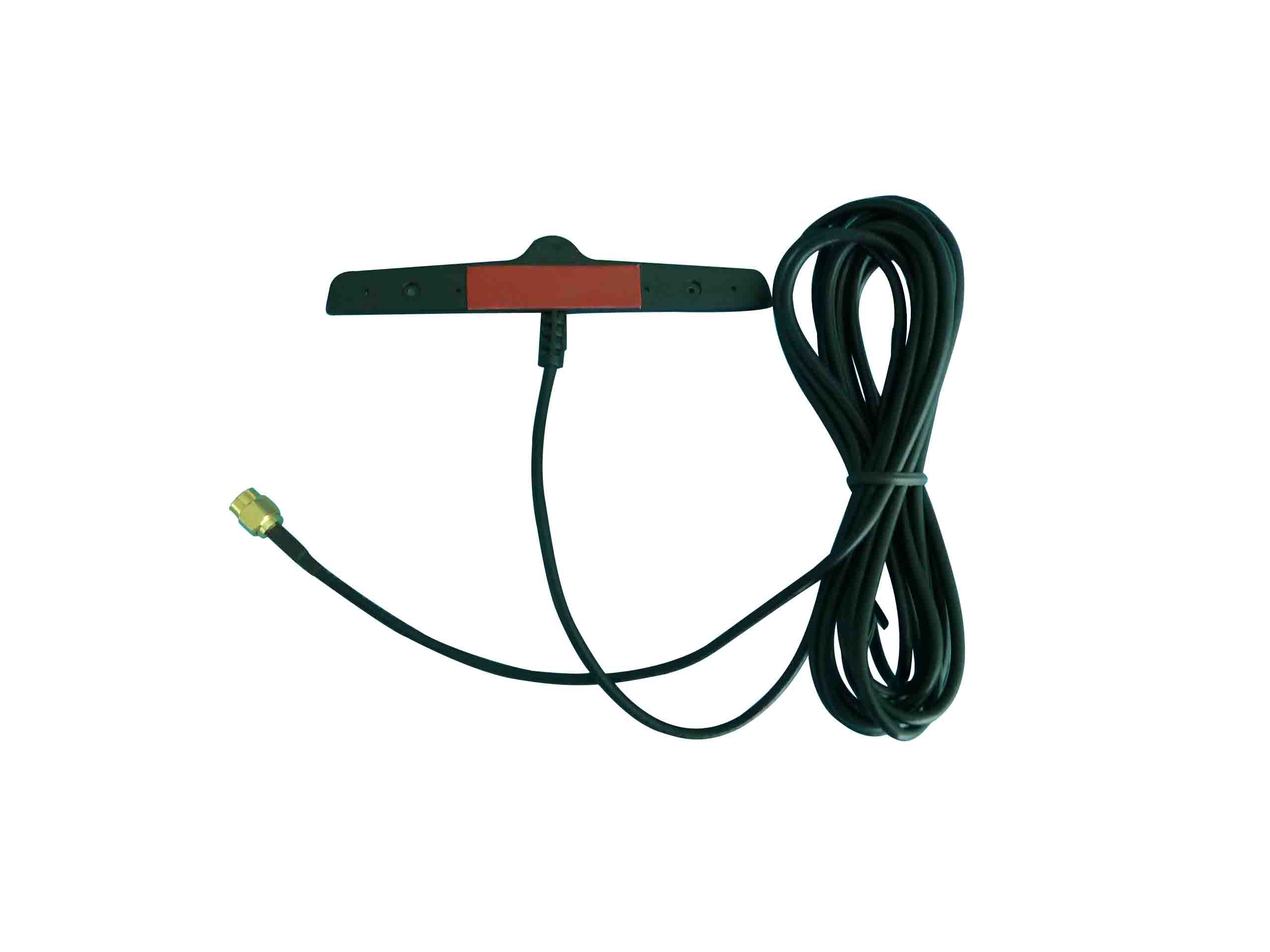

Horizontal / Vertical Black Strip 900 / 1800MHZ Dual Band GSM Car Antenna Patch 2 dBi
Horizontal / Vertical Black Strip 900 / 1800MHZ Dual Band GSM Car Antenna Patch 2 dBi
Horizontal / Vertical Black Strip 900 / 1800MHZ Dual Band GSM Car Antenna Patch 2 dBi
Horizontal / Vertical Black Strip 900 / 1800MHZ Dual Band GSM Car Antenna Patch 2 dBi
Horizontal / Vertical Black Strip 900 / 1800MHZ Dual Band GSM Car Antenna Patch 2 dBi
Horizontal / Vertical Black Strip 900 / 1800MHZ Dual Band GSM Car Antenna Patch 2 dBi
Horizontal / Vertical Black Strip 900 / 1800MHZ Dual Band GSM Car Antenna Patch 2 dBi
Horizontal / Vertical Black Strip 900 / 1800MHZ Dual Band GSM Car Antenna Patch 2 dBi
Specifications
Model Number :
RSS-900/1800-2B
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

Horizontal / Vertical Black Strip 900 / 1800MHZ Dual Band GSM Car Antenna Patch 2 dBi

Feature:
● Good appearance
● Full day for working ,waterproof
● Optimized dimension
● Use 3M powerful sticker , easy to mount mounting

Application:
● 900&1800MHZ GSM System
● Car security
● Terminal receiving antenna

Specification

Model NO

RSS-900/1800-2B

Electric Spec

Frequency rang-MHz

890～960/ 1710～1880

Bandwidth -MHz

70/170

Gain -dBi

2

VSWR

≤2.0

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

20

Lightning protection

DC ground

Connector model

SMA Male or others

Mechanical Specification

Size -mm

106*18*5

Antenna weight-kg

0.045

Working Temperature -°c

-40～60

Radome color

Black

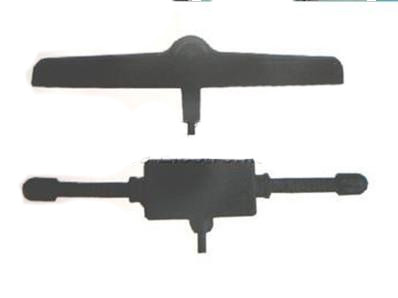

Antenna details :

View of us ;
