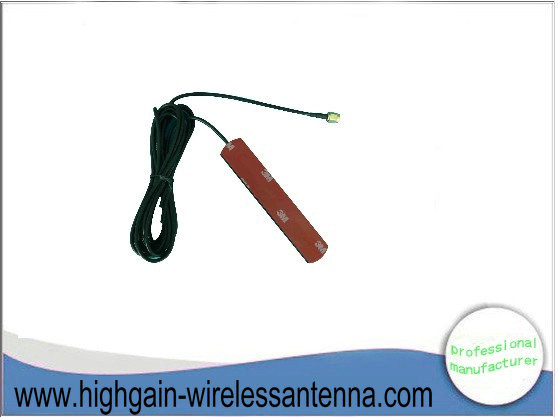

Glued Strip GSM Patch Antenna 890 - 960 MHz 2 dBi DC Ground With SMA Male Connector
Glued Strip GSM Patch Antenna 890 - 960 MHz 2 dBi DC Ground With SMA Male Connector
Glued Strip GSM Patch Antenna 890 - 960 MHz 2 dBi DC Ground With SMA Male Connector
Glued Strip GSM Patch Antenna 890 - 960 MHz 2 dBi DC Ground With SMA Male Connector
Specifications
Model Number :
RSS-900-2
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

Glued Strip GSM Patch Antenna 890 - 960 MHz 2 dBi DC Ground With SMA Male Connector

Feature:


● Good appearance
● Full day for working ,waterproof
● Optimized dimension
● Use 3M powerful sticker , easy to mount mounting

Application:
● 900MHZ telecommunication System
● Car security
● Terminal receiving antenna

Specification

Model NO

RSS-900-2

Electric Spec

Frequency rang-MHz

890～960

Bandwidth -MHz

70

Gain -dBi

2

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

SMA Male or others

Mechanical Specification

Size -mm

115*21*4.5

Antenna weight-kg

0.04

Working Temperature -°c

-40～60

Radome color

Black

Antenna details :

View of us ;
