3M Sticker Glued Strip 890 - 960 MHz/ 1710 - 1880MHz Dual Frequency GSM Patch Antenna
3M Sticker Glued Strip 890 - 960 MHz/ 1710 - 1880MHz Dual Frequency GSM Patch Antenna
3M Sticker Glued Strip 890 - 960 MHz/ 1710 - 1880MHz Dual Frequency GSM Patch Antenna
3M Sticker Glued Strip 890 - 960 MHz/ 1710 - 1880MHz Dual Frequency GSM Patch Antenna
3M Sticker Glued Strip 890 - 960 MHz/ 1710 - 1880MHz Dual Frequency GSM Patch Antenna
3M Sticker Glued Strip 890 - 960 MHz/ 1710 - 1880MHz Dual Frequency GSM Patch Antenna
Specifications
Model Number :
RSS-900/1800-2A
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

3M Sticker Glued Strip 890 - 960 MHz/ 1710 - 1880MHz Dual Frequency GSM Patch Antenna

Application:
● 900&1800 MHZ GSM System
● Car security
● Terminal receiving antenna


Feature:

● Use 3M powerful sticker , easy to mount
● Good appearance
● Full day for working ,waterproof
● Optimized dimension

Specification

Model NO

RSS-900/1800-2A

Electric Spec

Frequency rang-MHz

890～960/ 1710～1880

Bandwidth -MHz

70/170

Gain -dBi

2

VSWR

≤2.0

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

20

Lightning protection

DC ground

Connector model

SMA Male or others

Mechanical Specification

Size -mm

115*21*5

Antenna weight-kg

0.04

Working Temperature -°c

-40～60

Radome color

Black

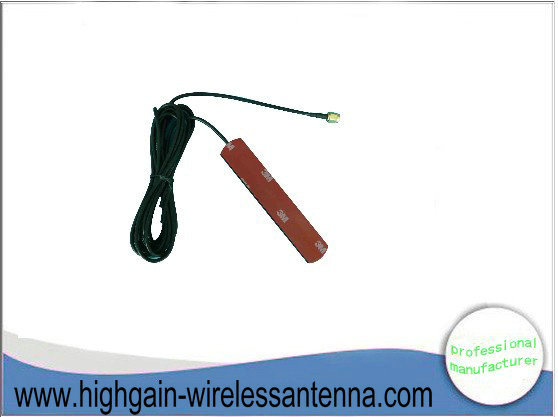

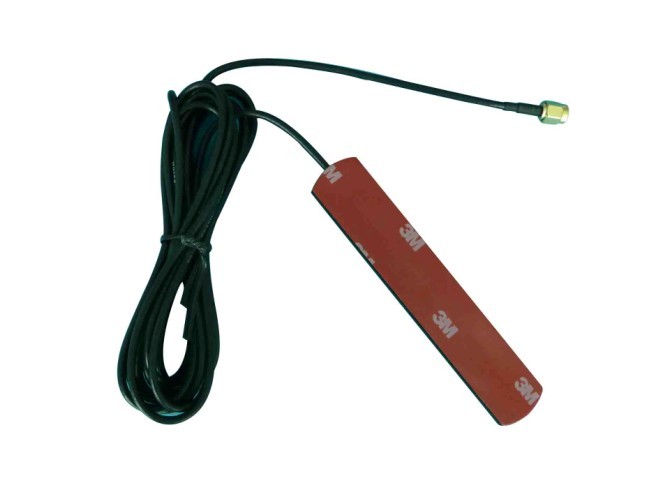

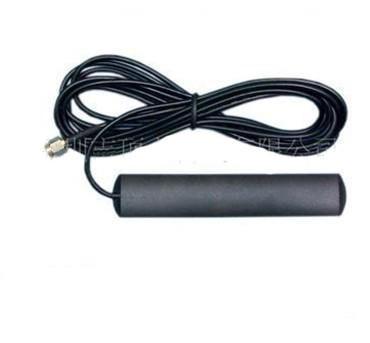

Antenna details :

View of us ;
