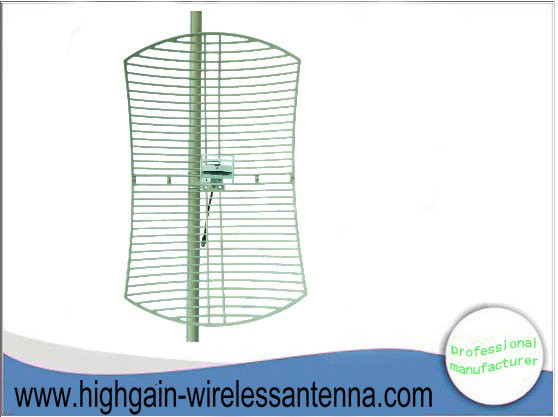

2.4GHZ WIFI WILAN Grid Parabolic High Gain 3G Antenna Long Distance 20dBi
2.4GHZ WIFI WILAN Grid Parabolic High Gain 3G Antenna Long Distance 20dBi
Specifications
Model Number :
RSGR-3G-20
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
High Gain 3G Antenna
Feature :
Die cast aluminum reflector
Application :
Long-distance transmission
Frequency rang-MHz :
1920-2170
Bandwidth -MHz :
250
Gain -dBi :
20
Description


2.4GHZ WIFI WILAN Grid Parabolic High Gain 3G Antenna Long Distance 20dBi


Feature:
● High Gain, Larger F/B Ratio
● Die cast aluminum reflector
● UV stable coat finish
● Can be installed H or V


Application:
● 2.4GHZ WIFI WILAN system
● Long-distance transmission
● Wireless bridge


Specification

Model NO

RSGR-3G-20

Electric Spec

Frequency rang-MHz

1920-2170

Bandwidth -MHz

250

Gain -dBi

20

beam width -°

H:18 V:14

F/B Ratio -dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N-Type or Customized

Mechanical Specification

Size -mm

600*900

Cable length-m

0.3

Antenna weight-kg

3.2

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50




Antenna details :
















Application Example :




Install demonstration




View of us ;
