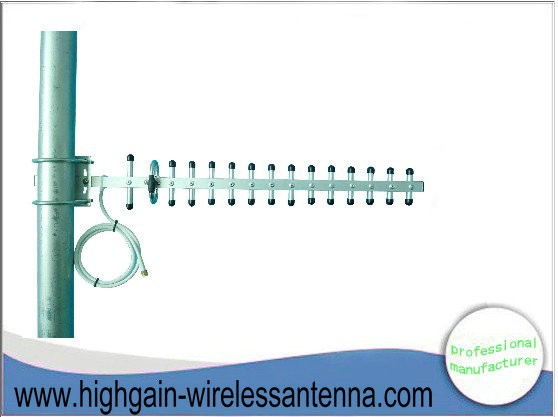

Aluminum Alloy outdoor High Gain 3G Antenna / 16dBi Directional Yagi Antenna
Aluminum Alloy outdoor High Gain 3G Antenna / 16dBi Directional Yagi Antenna
Specifications
Model Number :
RSY-3G-16
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
High Gain 3G Antenna
Feature :
Aluminum Alloy frame,Optional installation H or V
Bandwidth -MHz :
250
Polarization :
Horizontal or Vertical
Max power -W :
100
size :
1m
Description


Aluminum Alloy outdoor High Gain 3G Antenna / 16dBi Directional Yagi Antenna


Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V


Application:
● 3G System
● Point to Point system
● Long distance terminal antenna


Specification

Model NO

RSY-3G-16

Electric Spec

Frequency rang-MHz

1920-2170

Bandwidth -MHz

250

Gain -dBi

16

element

15

beam width -°

H:30 V:30

F/B Ratio-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

SMA female or others

Mechanical Specification

Size -mm

590*84*44

Cable length-m

1

Antenna weight-kg

0.32

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50






Antenna details :









Application Example :



Install demonstration




View of us ;
