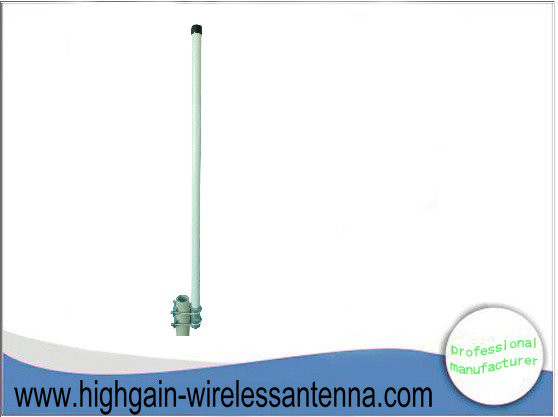

Vertical 3G High Gain Antenna / Omni Fiberglass Antenna For Repeater Station
Vertical 3G High Gain Antenna / Omni Fiberglass Antenna For Repeater Station
Specifications
Model Number :
RSF-3G-12
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
High Gain 3G Antenna
Polarization :
Vertical
Frequency rang-MHz :
1920～2170
Application :
3G Mobile telecommunication system
Feature :
High Gain, Lower VSWR
Max power -W :
100
Description


Vertical 3G High Gain Antenna / Omni Fiberglass Antenna For Repeater Station


Feature:
● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR,Strongly Anti-interference


Application:
● 3G Mobile telecommunication system
● Repeater & Base station system


Specification

Model NO

RSF-3G-12

Electric Spec

Frequency rang-MHz

1920～2170

Bandwidth -MHz

250

Gain -dBi

12

beam width -°

H:360 V:7

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

Φ32*900

Antenna weight-kg

0.85

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

hold in the pole



Antenna details :
















Application Example :




Install demonstration




View of us ;
