2.4 GHz hi gain WLAN Dual Polarized Directional Antenna WIFI 15DBi
2.4 GHz hi gain WLAN Dual Polarized Directional Antenna WIFI 15DBi
2.4 GHz hi gain WLAN Dual Polarized Directional Antenna WIFI 15DBi
2.4 GHz hi gain WLAN Dual Polarized Directional Antenna WIFI 15DBi
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSDP-2300-2700-15A
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Dual Polarized Directional Antenna
Feature :
High Gain,Optimized dimension
Radome material :
UPVC
Radome color :
Gray
Frequency rang :
2300-2700
Application :
2.4 GHz WIFI WLAN System etc
Description


2.4 GHz hi gain WLAN Dual Polarized Directional Antenna WIFI 15DBi


Feature:
● High Gain
● Full day for working
● Optimized dimension
● Dual polarization


Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● WiFi Wimax LTE System


Specification

RSDP-2300-2700-15A

Electric Specifications

Frequency rang

2300-2700

Polarization

±45°

Gain(DBi)

2×15

Beamwidth(0°)

H:90 V:15

F/B ratio(DB)

≥23

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

200

Lightning protection

DC ground

Mechanical Specifications

Connector model

2×N Female

antenna size (mm)

510*114*54

Packing size(mm)

540*125*105

Antenna weight (kg)

1.8

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～15

Working Temperature(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

35～75

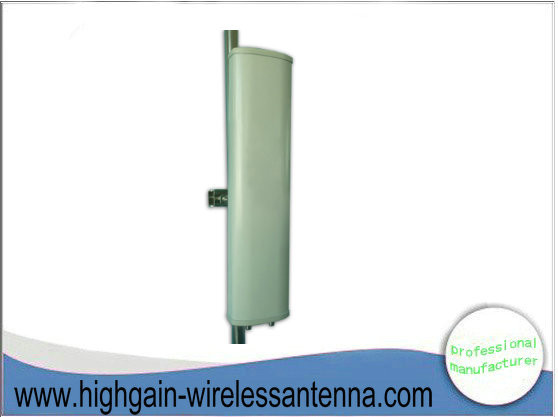

Antenna details :



















Application Example :

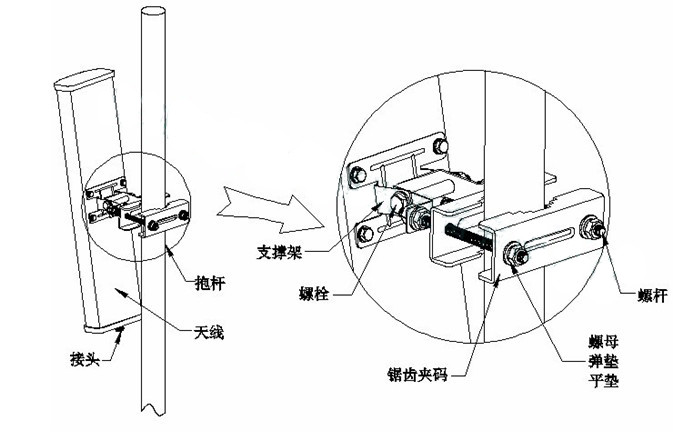

Install demonstration




View of us ;
