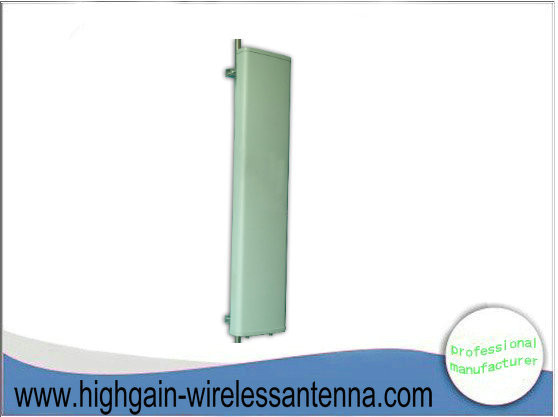

High Gain 3g Dual Polarized Directional Antenna for GSM / WLAN System
High Gain 3g Dual Polarized Directional Antenna for GSM / WLAN System
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSDP-800-2500-14
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Dual Polarized Directional Antenna
Feature :
High Gain,Optimized dimension
Radome material :
UPVC
Radome color :
Gray
Application :
GSM/CDMA/PCS/3G/WLAN System
Polarization :
±45°
Description

High Gain 3g Dual Polarized Directional Antenna for GSM / WLAN System

Feature:


● High Gain
● Full day for working
● Optimized dimension
● Dual polarization

Application:


● GSM/CDMA/PCS/3G/WLAN System
● Wireless telecommunication &Data transmission system

Specification

RSDP-800-2500-14

Electric Specifications

Frequency rang

806～960

1710～2200

2200～2500

Polarization

±45°

Gain(DBi)

2×10

2×12

2×12

Beamwidth(0°)

H:65 V:60

H:65 V:38

H:65 V:30

F/B ratio(DB)

≥25

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

≤1.5

Max power(W)

400

200

Mechanical Specifications

Connector model

2×N Female

antenna size (mm)

1200*280*80

Packing size(mm)

1235*315*150

Antenna weight (kg)

7

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Working Temperatu(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

50～75

Antenna details :

Application Example :

Install demonstration

View of us ;
