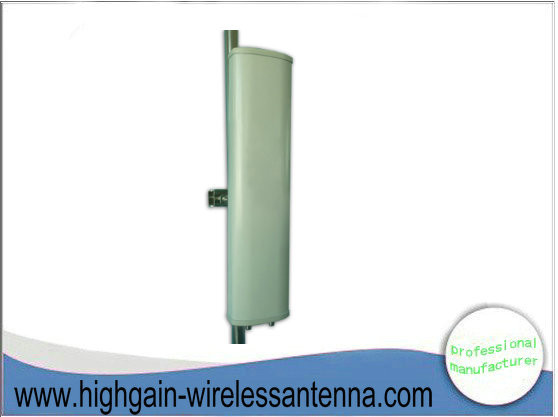

vertical horizontal 2.4 GHz Dual Polarized Directional Antenna for Repeater station 12DBi
vertical horizontal 2.4 GHz Dual Polarized Directional Antenna for Repeater station 12DBi
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSDP-2400-12
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Dual Polarized Directional Antenna
Feature :
High Gain,Optimized dimension
Radome material :
UPVC
Radome color :
Gray
Gain(DBi) :
2×12
Application :
Base station &Repeater station system etc
Description



vertical horizontal 2.4 GHz Dual Polarized Directional Antenna for Repeater station 12DBi



Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system

Feature:
● High Gain
● Full day for working
● Optimized dimension
● Dual Polarization

Specification

RSDP-2400-12

Electric Specifications

Frequency rang

2400-2500MHz

Polarization

±45°

Gain(DBi)

2×12

Beamwidth(0°)

H:90 V:15

F/B ratio(DB)

≥23

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

200

Lightning protection

DC ground

Mechanical Specifications

Connector model

2×N Female

antenna size (mm)

480*118*57

Packing size(mm)

Antenna weight (kg)

1.6

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～15

Working Temperature(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

30～50




Antenna details :



















Application Example :




Install demonstration




View of us ;
