ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
Specifications
Brand Name :
Pullner
Model Number :
Elpp
Certification :
ISO9001/ISO45001/ISO14001
Place of Origin :
Shanghai, China
MOQ :
1 pc
Price :
Negotiable
Supply Ability :
100 pcs per day
Packaging Details :
Export standard packaging
Description
General Description:

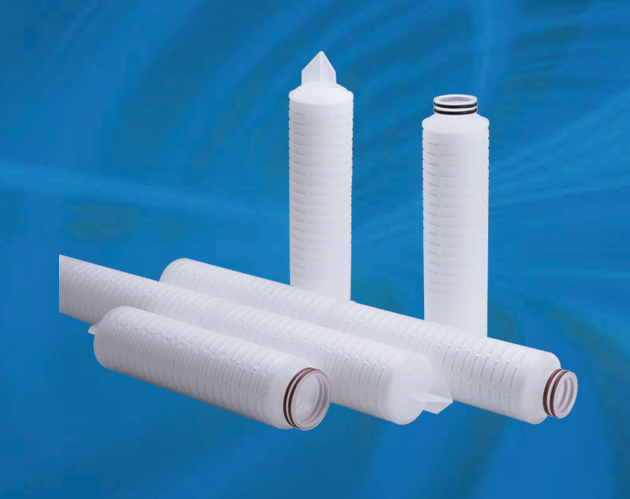

The ELPP series filter cartridge, made from electronic grade materials, effectively controls ion extractable issues in filtration. Its pure polypropylene structure gives the filter cartridge chemical compatibility. Applicable for most acids, alkalines, process water, and organic solvents filtration.

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane

Features:
  • High‑purity PP material, using a thermal welding process without adhesives, effectively controls ion extractables.
  • Nano fiber membrane material provides high throughput, making the filter cartridge long‑lasting and cost‑effective.
  • Offers various filtration precisions from 0.1‑25μm, meeting different filtration requirements.
Dimensions

Outer diameter

2.7" (69mm)

Length

10", 20", 30", 40"
Material of Construction

Filter Medium

PP

Support/Drainage

PP

Center core/Outer Cage/End Caps

PP

Seals Material

NBR, Silicone, EPDM, Viton, Teflon
Filter Performance

Removal rating

1um, 2um, 5um,

Max. operating temperature

80℃

Max. operating differential pressure

4.2 Bar @ 25℃

Max. operating differential pressure

(Reverse direction)

2.1 Bar @ 25℃

Max. temperature sterilization

30 times, 30 minutes at 121℃

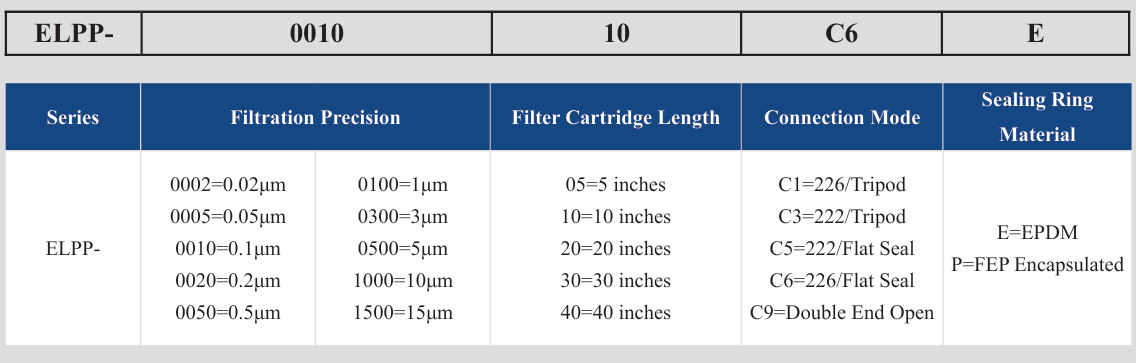

Ordering Information:

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane

Pullner Exhibition

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane

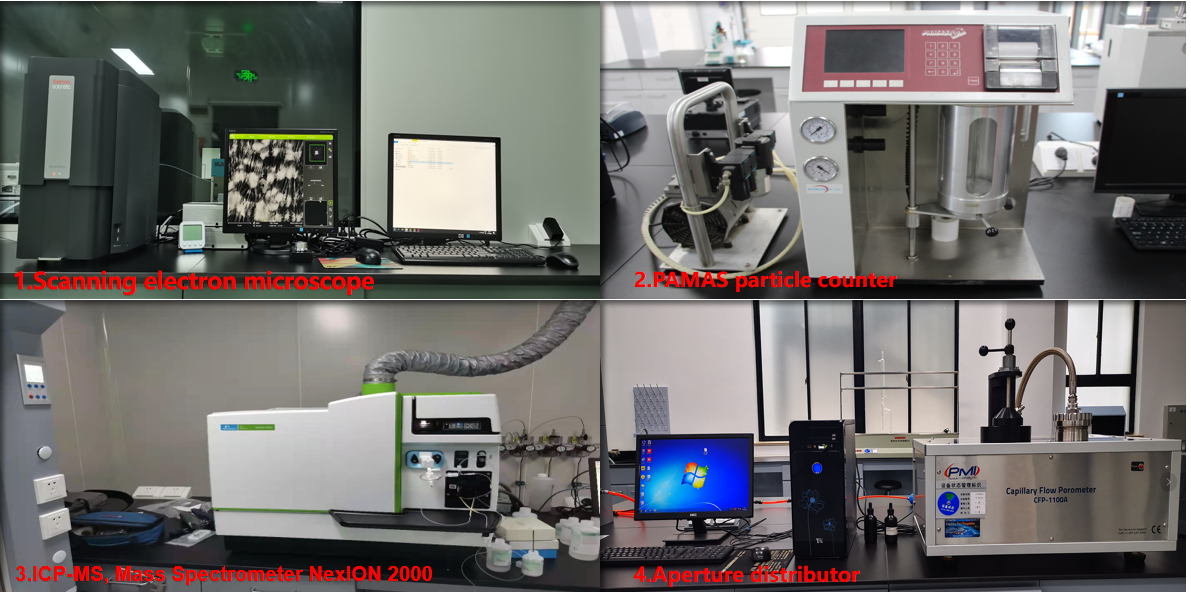

Pullner laboratory:

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane

Delivery&Shipping

ELPP Series Filter Cartridge with Electronic Grade Materials for 0.1-25 μm Filtration Precision and High Throughput Nano Fiber Membrane
