Specifications
Brand Name :
OEM/Customized
Model Number :
ZH101BH053-03A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
10.1 Inch
Resolution :
1920x1200
Brightness :
1000 cd/m² (Typ.)
Display type :
IPS, Normally Black
Outline Dimensions :
229.2(W)x149.8(H)x4.5(T) mm
Operating Temperature :
-20℃~+70℃
Description

10.1 Inch TFT LCD Display 1920x1200 resolution with 1000nits Optional with Motherboard

The ZH101BH053-03A 10.1 Inch Motherboard LCD Display is engineered for high-performance industrial applications that demand reliability, efficiency, and versatility. With 1920x1200 resolution, 1000 cd/m² brightness, and IPS technology, this display delivers superior clarity and image quality. The opti6666 onal motherboard provides seamless integration, making this Motherboard LCD Display an ideal choice for industrial control systems, embedded applications, and HMI solutions.

Superior Brightness for Clear Viewing in Challenging Environments
With a brightness of 1000 cd/m², the ZH101BH053-03A guarantees excellent readability even in high ambient light environments. This makes it perfect for outdoor applications, digital signage, or any setting where high visibility is crucial. The high brightness ensures the display’s performance is never compromised.

High-Resolution Display for Precise Visualization
Equipped with a 1920x1200 resolution, the ZH101BH053-03A offers exceptional image clarity and sharpness, making it perfect for applications in industrial automation, medical devices, and control panels. The IPS technology ensures that the display remains crisp and clear even at wide viewing angles, ideal for use in HMI systems and multi-monitor setups.

Customizable with Optional Motherboard
The ZH101BH053-03A offers an optional motherboard, providing greater flexibility for custom system integration. This makes it an excellent choice for embedded system developers, OEM manufacturers, and companies looking to build bespoke solutions with this Motherboard LCD Display.

Product Specification

Item Number
ZH101BH053-03A
Screen Size 10.1 Inch
Resolution 1920x1200
Brightness 1000 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 45pins connector
Active Aera 216.8064(W)x135.504(H) mm
Outline Dimensions 229.2(W)x149.8(H)x4.5(T) mm
Backlight 36-Chip White LED, 240mA 27V
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel Optional Touch Panel
Motherboard Optional with Motherboard

Product Drawing

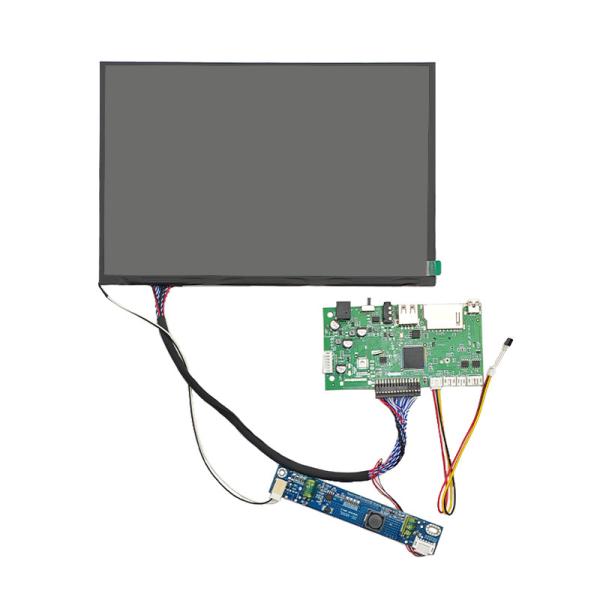

10.1 Inch TFT Motherboard LCD Display 1920x1200 Resolution 1000nits

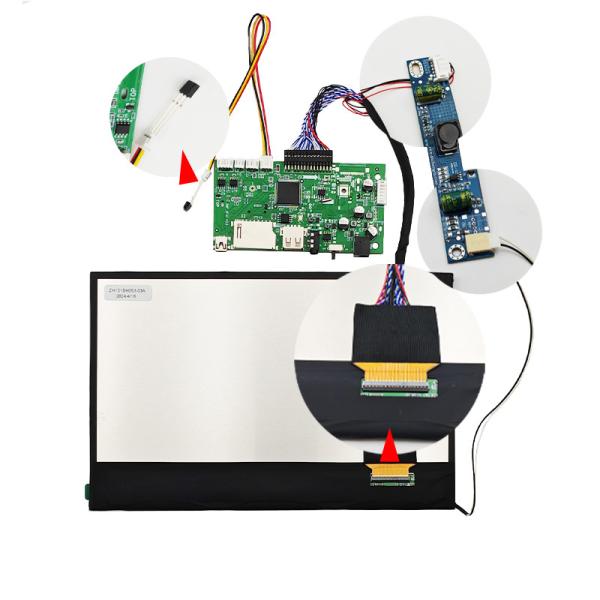

10.1 Inch TFT Motherboard LCD Display 1920x1200 Resolution 1000nits

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FAQ

Q1: What is the brightness of the ZH101BH053-03A?
A1: The ZH101BH053-03A features a 1000 cd/m² brightness, making it ideal for high-visibility applications in high ambient light environments.

Q2: Can the ZH101BH053-03A be integrated with custom systems?
A2: Yes, the ZH101BH053-03A offers an optional motherboard, providing flexible integration with custom embedded systems, industrial equipment, or OEM devices.

Q3: Does the ZH101BH053-03A have touch functionality?
A3: Yes, the ZH101BH053-03A can be equipped with an optional touch panel, allowing for interactive applications such as self-service kiosks, POS systems, and HMI interfaces.

Q4: What is the temperature range for operating the ZH101BH053-03A?
A4: The ZH101BH053-03A operates in an ambient temperature range of -20℃ to +70℃, making it suitable for industrial environments with fluctuating temperatures.

Q5: Can the ZH101BH053-03A be used for outdoor applications?
A5: Yes, with its 1000 cd/m² brightness, the ZH101BH053-03A is designed for outdoor applications like digital signage or interactive kiosks,

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Module!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
