Specifications
Brand Name :
OEM/Customized
Model Number :
ZH070BIWSV001-02A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
7.0 Inch
Resolution :
1024x600
Brightness :
350cd/m² (Typ.)
Display type :
IPS,Normally Black
Outline Dimensions :
164.9(W) x100.0(H) x 3.45(T) mm
Operating Temperature :
-20℃~+60℃
Description

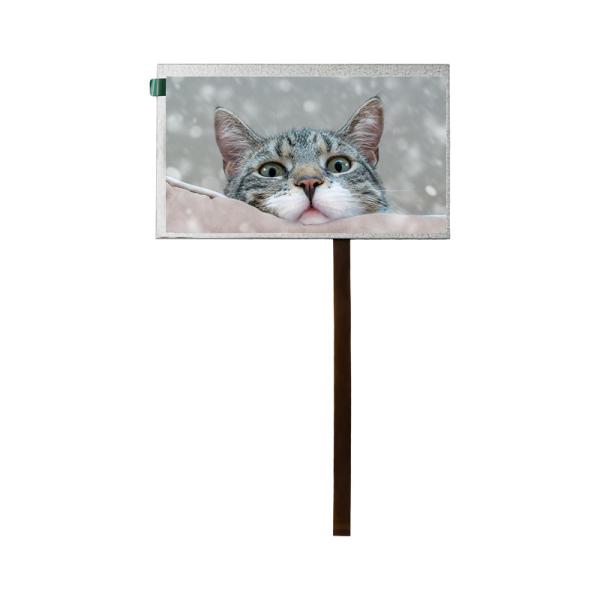

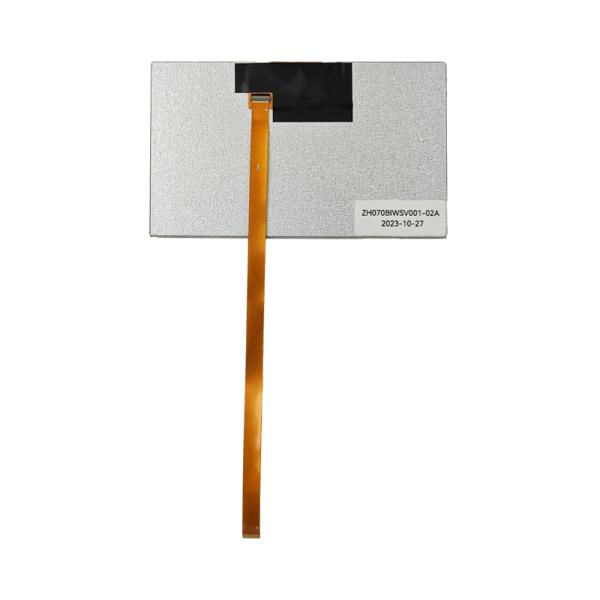

LCD Display Screen 7 inch 350nits IPS Panel 1024x600 Optional with Motherboard

Elevate your embedded systems, HMIs, kiosks, and portable devices with the ZH070BIWSV001-02A, a robust 7.0-inch IPS LCD display engineered for demanding environments. Featuring exceptional brightness, wide viewing angles, and versatile integration options including a dedicated Motherboard LCD Display solution, this module delivers the performance and flexibility B2B clients require.

Standard MIPI Interface (31-pin Connector): Simplifies connection to compatible controllers and processors.

Efficient LED Backlight (21-Chip, 140mA, 9.0V): Provides uniform illumination with optimized power consumption.

Optional Touch Panel: Seamlessly integrate resistive or capacitive touch functionality based on project needs.

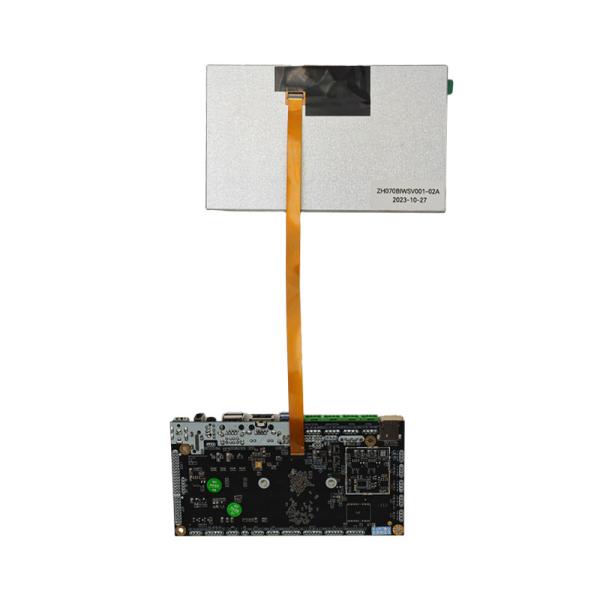

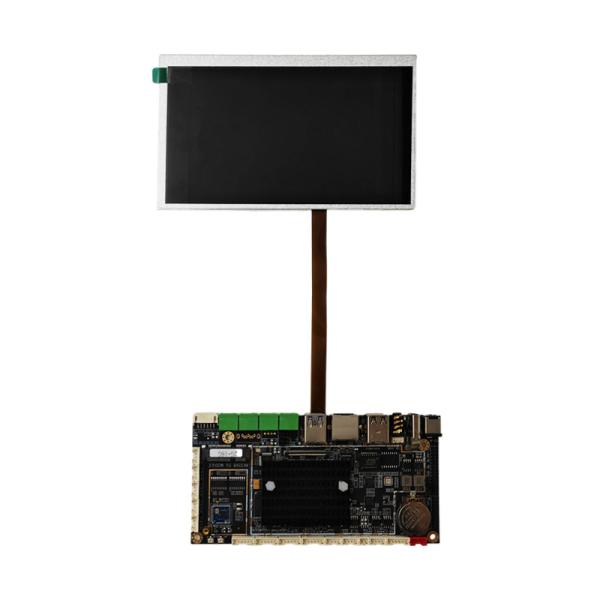

Optional Integrated Motherboard LCD Display Solution: Streamline your design and reduce development time with our pre-validated display+controller board combinations. This Motherboard LCD Display package offers a complete, ready-to-integrate subsystem.

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification

item ZH070BIWSV001-02A
Screen Size 7.0 Inch
Resolution 1024x600
Brightness 350 cd/m²(Typ.)
Interface MIPI, 31pins Connector
Display Mode
IPS,Normally Black
CR 800
Viewing Angle 85/85/85/85 (Typ.)
NTSC 50 %
Active Aera 154.21(W) x85.92(H)mm
Outline Dimension 164.9(W) x100.0(H) x 3.45(T) mm
Backlight 21-Chip White LED 140mA 9.0V
Operating Temperature -20℃~+60℃
Storage Temperature -30℃~+70℃
Touch Panel Optional Touch Panel
Motherboard Optional with Motherboard

Product Drawing

7 Inch Motherboard LCD Display Screen 350nits IPS Panel 1024x600

7 Inch Motherboard LCD Display Screen 350nits IPS Panel 1024x600

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium Motherboard LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Integrate Brilliance - Order Samples Now!
