Specifications
Brand Name :
OEM/Customized
Model Number :
ZH156QH001-01C1-TK1
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
15.6 Inch
Resolution :
1920x1080
Brightness :
860 cd/m² (Typ.)
Display type :
IPS, Normally Black
Outline Dimensions :
360.0(W) x212.3(H) x6.4(T) mm
Operating Temperature :
-20℃~+70℃
Description

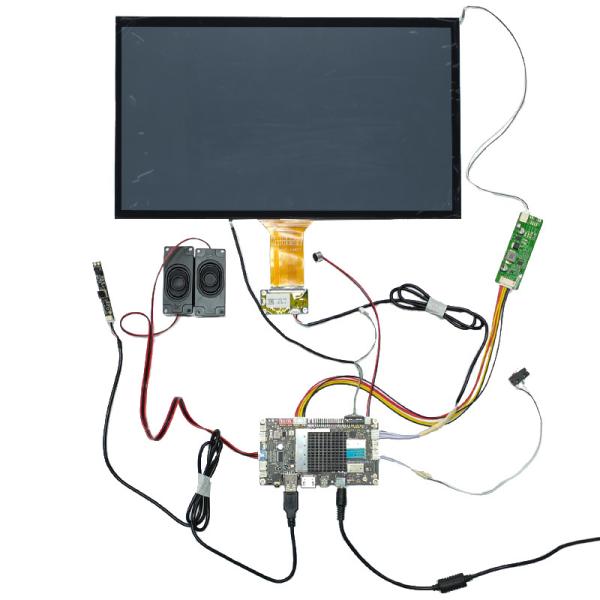

15.6 Inch FHD IPS Touchscreen LCD TFT 1920x1080 Optional with Motherboard

It is a 15.6-inch Motherboard LCD Display, with Full HD resolution (1920x1080), high brightness 860 cd/m² for superior outdoor visibility, and IPS technology for wide viewing angles, it delivers exceptional visual performance in any environment.
With integrated Touch Panel and support for I2C / USB interfaces, this display offers precise and responsive control, ideal for interactive kiosks, industrial control systems, and embedded computing solutions. Its optional motherboard compatibility allows direct integration without additional display controllers, reducing design complexity and cost.

Key Features
High Brightness (860 cd/m²) – Ensures excellent visibility in outdoor and high-ambient light environments.

Motherboard-Compatible – Optional motherboard integration eliminates the need for additional display driver boards.

Wide Temperature Range (-20℃ to +70℃) – Suitable for industrial, military, and outdoor use.

Full HD Resolution – Crisp and detailed image quality for data visualization and interactive applications.

Integrated Touch Panel – Responsive multi-touch input via I2C or USB interface.

Industrial-Grade Durability – Designed for 24/7 operation in harsh conditions.

Applications:

Industrial control terminals

Ruggedized portable devices

Medical diagnostic equipment

Kiosks and interactive panels

Vehicle-mounted control systems

Outdoor and semi-outdoor information displays

Product Specification

Item Number ZH156QH001-01C1-TK1
Screen Size 15.6 Inch
Resolution 1920x1080
Brightness 860 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface EDP, 30pins Connector
Active Aera 334.16(W) x 193.56(H) mm
Outline Dimension 360.0(W) x212.3(H) x6.4(T) mm
Backlight 60-Chip White LED, 260mA 33V
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel with Touch Panel
Touch Interface I2C / USB
Touch Driver IC ILI2511
Cover lens thickness 1.1mm
Motherboard Optional Motherboard

Product Drawing

15.6 Inch FHD IPS Touchscreen LCD TFT 1920x1080 Optional With Motherboard

15.6 Inch FHD IPS Touchscreen LCD TFT 1920x1080 Optional With Motherboard

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
