Customized 7.0 Inch TFT LCD Display High Brightness 1000nits IPS 1024x600 Screen

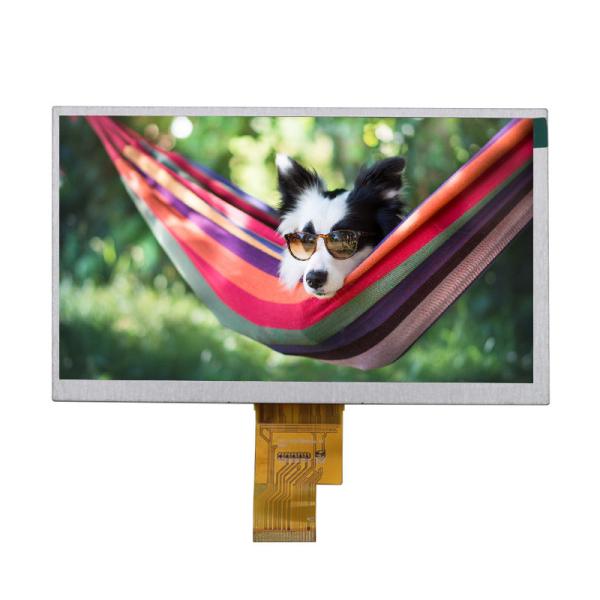

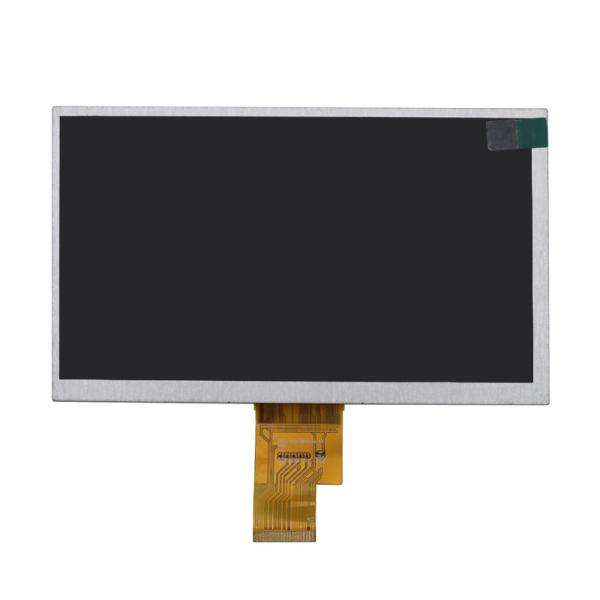

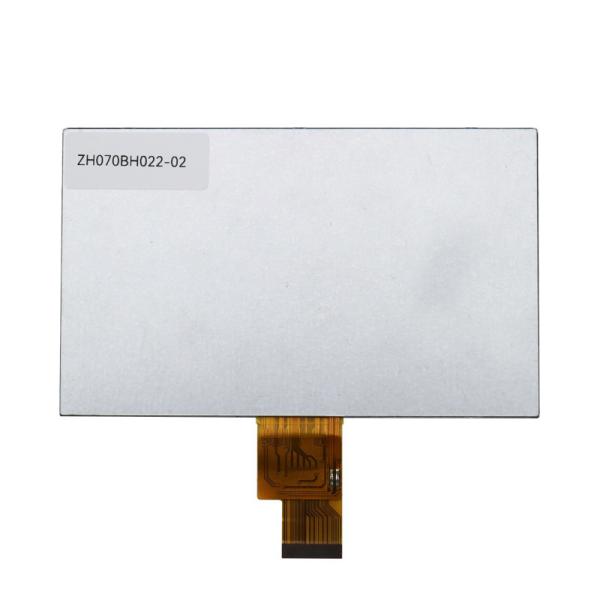

Introducing the ZH070BH022-02, is 7.0-inch High Brightness LCD Display engineered for environments where standard displays fail. Designed for B2B applications demanding exceptional performance under challenging lighting conditions, this display module sets the benchmark for reliability and clarity.

1000 cd/m² High Brightness: Conquer direct sunlight and high ambient light with our flagship High Brightness LCD Display, ensuring critical information is always visible.

Industrial-Grade IPS Panel: Features a 7.0-inch IPS (In-Plane Switching) panel with Normally Black mode, delivering wide viewing angles of 85°/85°/85°/85° (L/R/U/D) and high contrast (800:1 Typ.) for accurate color representation from any perspective.

Extended Temperature Operation: Reliable performance guaranteed across a wide operating temperature range of -20°C to +60°C and storage from -30°C to +70°C, ideal for outdoor, industrial, and automotive applications.

Touch Panel Ready: Optional touch panel (resistive or capacitive, depending on configuration) enhances user interactivity where required.

Compact & Robust Design: Optimized outline dimensions (164.9mm x 100.0mm x 3.5mm) with a 154.21mm x 85.92mm active area provide a high screen-to-body ratio in a durable package.

Company's focus on the core

• Industrial-Grade TFT/OLED Displays (0.96" to 32")
• Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
• Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
• Touch Solutions: Resistive/Capacitive/Cover Glass
• TN/IPS Panels | Custom Backlight Systems

Product Specification

Product Drawing

Why Choose ZhanHui TFT LCD Screen?

• Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
• A powerful engineering support team offers a one-stop integrated solution
• Flexible and efficient customization capabilities, with rapid response to demands
• Strict quality control system (such as through IATF 16949, ISO 9001)
• Global logistics and localized service support
• Highly competitive cost-effectiveness

FAQ: ZH070BH022-02 High Brightness LCD Display

Q: What is the key advantage of the 1000 cd/m² brightness level?
A: This High Brightness LCD Display level (1000 nits) is essential for ensuring excellent screen readability in direct sunlight or under very bright indoor lighting, common in industrial, outdoor, and transportation applications. It significantly outperforms standard consumer-grade displays.

Q: What interface does this display module use?

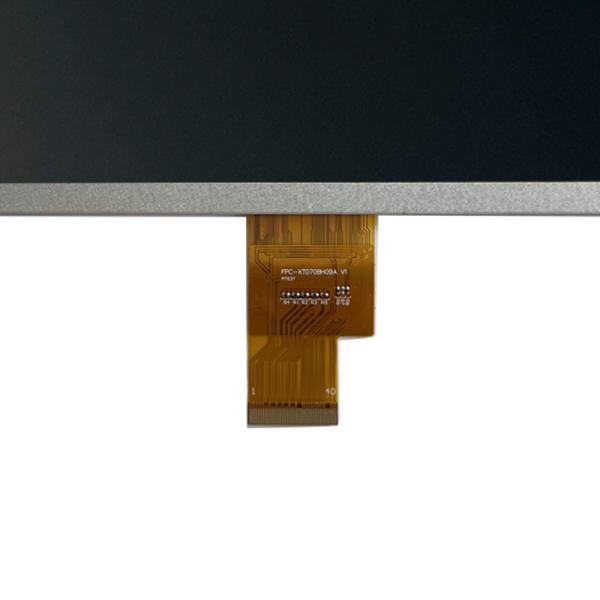

A: It uses a standard LVDS (Low-Voltage Differential Signaling) interface with a 40-pin connector. LVDS is widely used in industrial and embedded systems for its reliability and noise immunity.

Q: Can I add touch functionality to this display?
A: Yes. The ZH070BH022-02 offers optional touch panel integration. Please specify your requirement (typically Resistive or Projected Capacitive) when inquiring or ordering so we can provide the correct configuration.

Q: Are there any special considerations for integrating this high brightness display?
A: Primarily ensure adequate power supply (20V for backlight @ 200mA) and thermal management, especially if operating continuously at high brightness in elevated ambient temperatures. The LVDS interface requires a compatible controller board.

Q: Is this display suitable for use in safety-critical applications?
A: The ZH070BH022-02 is designed for industrial reliability. However, final suitability for any specific safety-critical application depends on the complete system design, certifications required, and rigorous testing performed by the integrator or end-user. Consult our detailed specifications and discuss your specific needs with our engineering team.
