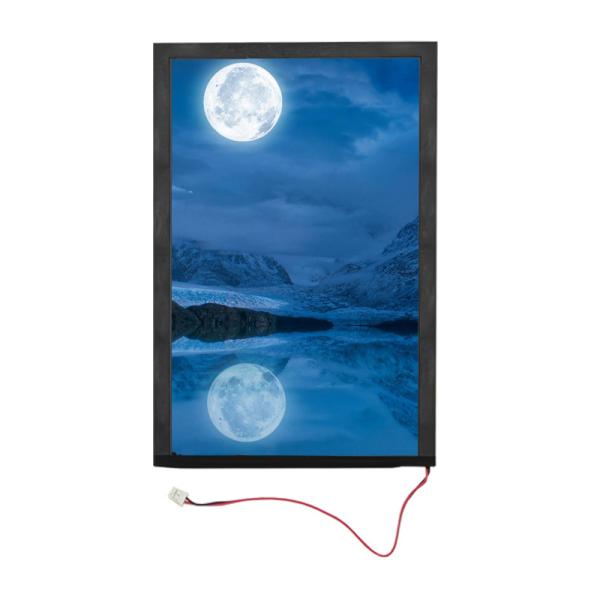

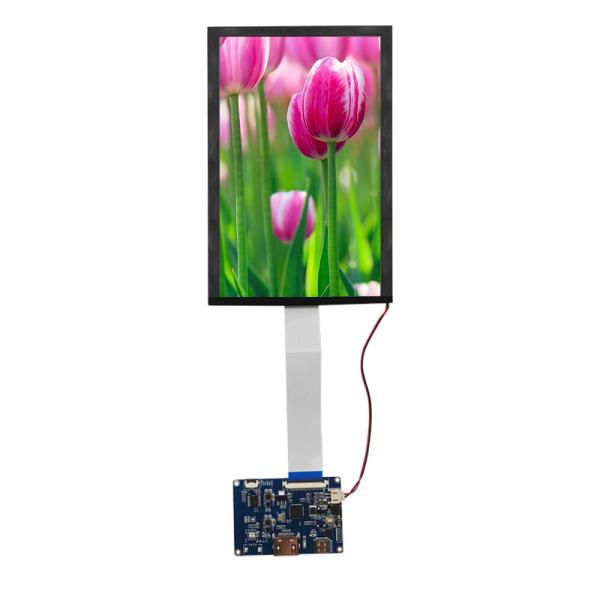

Industrial 7 Inch 2000 nits High Brightness LCD Display Capacitive touch panel Optional Driver Board

This 7 inch 1200×1920 high brightness LCD display is designed specifically for B2B industrial applications requiring outdoor readability, sunlight visibility, and wide-temperature reliability.

it is 2000nits sunlight readable LCD, IPS panel, and MIPI 4-lane interface, this 7 inch high brightness LCD module delivers exceptional clarity for rugged handheld terminals, industrial HMI equipment, medical devices, and outdoor embedded systems.

As a professional industrial display manufacturer, we support OEM/ODM customization including capacitive touch panel, cover glass, optical bonding, FPC customization, and backlight brightness adjustment.

Key Features of 7 Inch 1200×1920 High Brightness LCD Display Module

7 inch IPS LCD with 1200×1920 resolution for high-definition display

2000nits high brightness LCD (sunlight readable, outdoor readable)

all viewing angle 80/80/80/80 for professional industrial displays

High brightness LED backlight, 56 LEDs, 21V / 400mA

Operating temperature –20°C to +60°C, reliable for industrial use

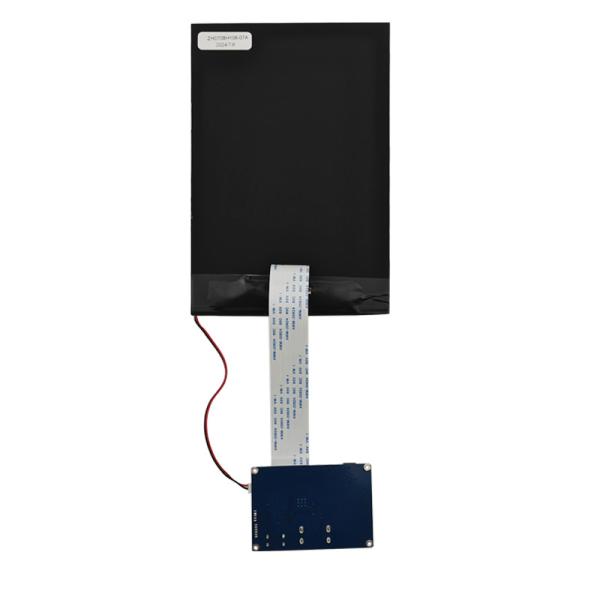

Optional capacitive touch panel, USB/I2C touch controller

Supports OEM/ODM, long-term stable supply for B2B projects

Suitable for industrial HMI, outdoor terminals, handheld devices, medical equipment, IoT controllers

Application

This 7 inch High Brightness LCD Display is suitable for:

• Outdoor industrial equipment & HMI terminals

• Smart parking meters and EV charging stations

• Military and law enforcement devices

• Marine navigation systems

• Medical monitors and diagnostic handhelds

• Rugged tablets, handheld scanners, and kiosks

Product Specification

Product Drawing

Why Choose ZhanHui TFT LCD Screen?

• Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
• A powerful engineering support team offers a one-stop integrated solution
• Flexible and efficient customization capabilities, with rapid response to demands
• Strict quality control system (such as through IATF 16949, ISO 9001)
• Global logistics and localized service support
• Highly competitive cost-effectiveness

FAQ

Q1: Is this High Brightness LCD Display suitable for direct sunlight use?
A1: Yes. With a typical brightness of 2000 cd/m² and IPS technology, this display maintains clarity and color integrity in full daylight conditions.

Q2: Can you supply a version with a touch panel?
A2: Absolutely. Both capacitive (PCAP) and resistive (RTP) touch panels are available upon request.

Q3: What is the lead time for bulk orders?
A3: Standard lead time is 4–6 weeks for production orders. Expedited samples may be available within 10 business days.

Q4: Is the MIPI interface compatible with Android-based systems?
A4: Yes. The MIPI DSI interface is widely supported by ARM-based and Android SoCs. We can provide sample driver configuration upon request.

Q5: Can the High Brightness LCD Display be customized for extended temperature applications?
A5: Yes. We offer wide-temperature grade versions and components for specialized environments. Please consult our engineering team.
