12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display
12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display
12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display
12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display
12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display
12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display
12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display
12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH0121PH003-03A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
12.1 Inch
Resolution :
1024x768
Brightness :
1000 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
260.5(W) x204.0(H) x 7.2(T) mm
Operating Temperature :
-20℃~+70℃
Description

High Brightness 1000nits TFT LCD Display 12.1 Inch 1024x768 Resolution

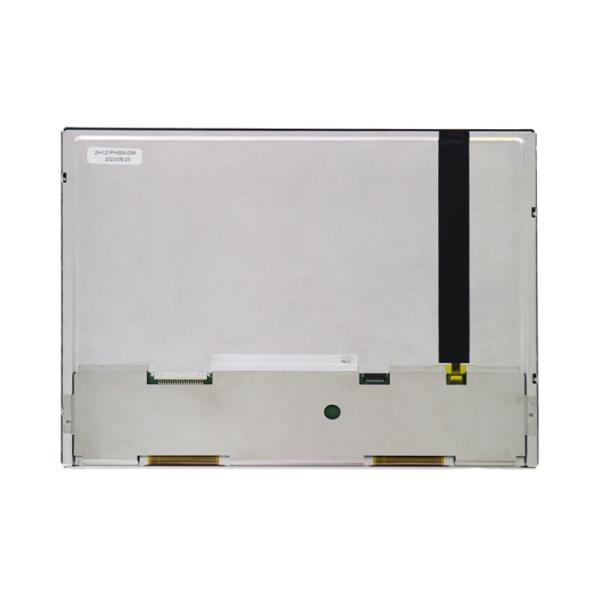

The ZH0121PH003-03A is 12.1-inch high brightness LCD display designed to deliver superior image quality in environments where visibility is a challenge. With an impressive 1000 cd/m² brightness (Typ.), this high brightness LCD display is ideal for industrial, automotive, and commercial applications where screen readability is critical in bright lighting conditions.

It also features an LVDS interface with a 20-pin connector, making integration into embedded systems and industrial control systems straightforward. Additionally, the optional Touch Panel offers interactive capabilities, enhancing the user experience in applications requiring touch-based input.

Applications

Industrial Control Systems: Ideal for machinery interfaces, process control panels, and other industrial systems requiring high-quality displays with clear visuals.

Outdoor Kiosks & Digital Signage: Its 1000 cd/m² brightness ensures that the display remains visible even under direct sunlight, making it perfect for outdoor advertising and self-service kiosks.

Automotive Displays: Suitable for in-vehicle dashboards, navigation systems, and infotainment displays, where high visibility and wide viewing angles are essential.

POS Systems and User Interfaces: The optional Touch Panel allows for intuitive interaction, making this display ideal for POS terminals, interactive kiosks, and retail systems.

Medical Devices: Perfect for medical equipment that requires a high-brightness display for clear visibility in variable lighting conditions.

Product Specification

Item Number ZH0121PH003-03A
Screen Size 12.1 Inch
Resolution 1024x768
Brightness 1000 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 20pins connector
Active Aera 245.76(W) x184.32(H) mm
Outline Dimension 260.5(W) x204.0(H) x 7.2(T) mm
Backlight 48-Chip White LED, 180mA 36V
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel Optional Touch Panel

Product Drawing

12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display

12.1 Inch High Brightness LCD Display 1024x768 Resolution 1000nits TFT LCD Display

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Contact Us for More Information
Are you looking for a high brightness LCD display that offers superior visibility, performance, and interactivity? Contact us today to learn more about the ZH0121PH003-03A and how it can help enhance your embedded systems, industrial control systems, or commercial applications.
