1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops

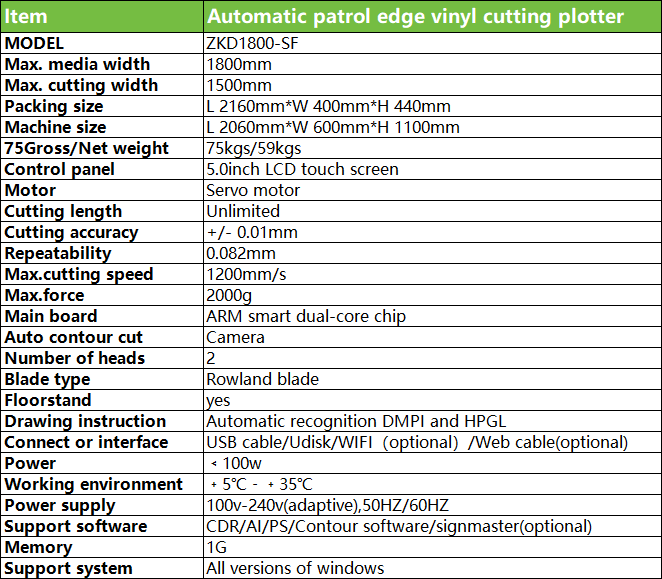

Specifications
Brand Name :
Anycut
Model Number :
ZKD1800-SF
Certification :
CE/FCC/RoHS
Place of Origin :
Anhui
MOQ :
1 piece
Price :
$1284-1684/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Delivery Time :
20-30 work days
Packaging Details :
L2160mm*400mm*440mm
Item :
Automatic patrol edge vinyl cutting plotter ZKD1800-SF
Max.media width :
1800mm
Max.cutting width :
1500mm
Control panel :
5.0 Inch LCD Touch Screen
Number of heads :
2
Positioning Technology :
Camera Auto-Positioning, One-Click Contour Extraction & Positioning Points
Drawing instruction :
Automatic recognition DMPI and HPGL
Connect or interface :
USB cable/Udisk/Web cable/WIFI(optional)
Support software :
CDR/AI/PS/Contour software/signmaster(optional)
Memory :
1G
Max Force :
2000g Super Force for Thick & Rigid Materials
Main board :
ARM Smart Dual-core Chip
Cutting Application :
Car Instrument Film, Instant Sticker, Photo Paper, Diagonal Floor Film, Business Cards, Custom Tags
Cutting Efficiency :
1200mm/s High-Speed Servo Motor, One-Pass Full/Half Cut & Crease
Description
1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops


The ZKD1800-SF Dual-Head Servo Cutting Plotter:

✅ Large-size High-efficiency Cutting

Max media width 1800mm, max cutting width 1500mm, ideal for car instrument films, instant stickers, photo papers, diagonal floor films, hollow boards, billboards, photo prints, custom tags, business cards, and small cards, with one-pass forming.

✅ Dual-servo High-speed Stability

Double-head trolley + high-speed servo motor, cutting speed up to 1200mm/s, stable paper feeding without jams, full cut/half cut/crease/cut in one step, boosting production efficiency for graphic and art shops.

✅ Smart Precision Positioning

Camera auto-positioning + 2000g super force, cutting accuracy ±0.001mm, repeatability 0.082mm, with self-developed software for one-click contour extraction and positioning points, ensuring precise irregular cutting.

✅ Full-scenario Compatibility

Supports reflective films, photo papers, hollow boards, etc., compatible with CDR/AI/PS, multi-connection (WIFI/USB/network), 100V-240V power, suitable for 24/7 studio production.

✅ Professional After-sales Support

R&D team + comprehensive after-sales service, technical training, durable equipment, ideal for graphic shops, car film processing, and advertising production.


1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops

1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops

1800mm High-Speed Cutting Machine with Camera Positioning for Graphic Shops
