Specifications
Brand Name :
Anycut
Model Number :
ZKD1800-SF
MOQ :
1piece
Price :
$1284~1684/piece
Payment Terms :
T/T,Western Union
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L2160mm*W400mm*H440mm
Max.cutting width :
1500mm
Control panel :
5.0 inch LCDtouch screen
Max.cutting speed :
1200mm/s
Max.force :
2000g
Main board :
ARM smart dual- core chip
Auto contour cut :
Camera
Drawing instruction :
Automatic recognition DMPI and HPGL
Connect and interface :
USB cable/Udisk/web cable/WIFI(optional)
Description

Anycut Dual-head Servo Smart Multi-Function Cutting Plotter Intelligent Positioning



The ZKD1800-SF is a multi-process high-speed cutting machine centered on dual-head servo dual-drive + intelligent visual precision positioning. Equipped with dual working heads and a high-speed servo motor, paired with a camera automatic positioning system, it can simultaneously complete composite processing (half-cut, full-cut, creasing, etc.), enabling one-stop "positioning-cutting-forming" operation. It avoids the process waiting time of single-head equipment, while combining 2000g ultra-high pressure and ±0.01mm-level precision to balance the cutting quality of delicate materials (such as reflective film and wall stickers) and the production efficiency of batch materials (such as car stickers and signs). Its 1200mm/s high-speed operation further shortens the delivery cycle of large orders.

The machine supports dual connectivity (WiFi/wired network), adapting to the network environments of different workshops. The combination of a 5.5-inch touch screen and an ARM smart dual-core mainboard not only lowers the operation threshold but also supports all Windows systems and mainstream design software. From the refined production of advertising signs to the mass processing of decorative materials, the ZKD1800-SF, with its differentiated advantages of "dual-head dual-drive + intelligent positioning precision cutting", serves as a core tool for "high efficiency + precision + ease of use" in multi-scenario production.



MODEL ZK1800-SF
Max. media width 1800mm
Max. cutting width 1650mm
Packing size L2160mm*W400mm*H440mm
Machine size L 2060mm*W 600mm*H1100mm
Gross/Net weight 75kgs/59kgs

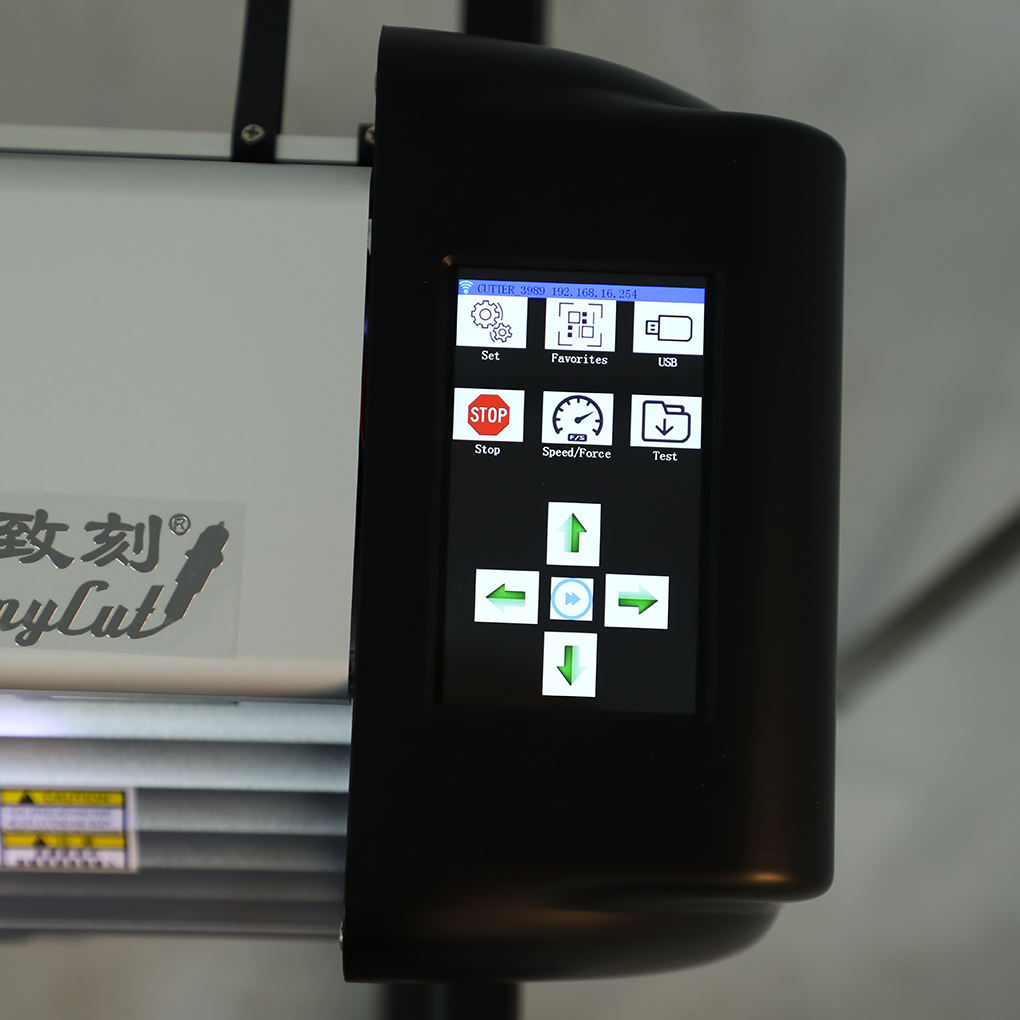

Control panel 5.0inch LCD touch screen
Motor Servo drive + Servo motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 1200mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 1
Number of Y motor 2
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/web cable/WIFI(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
