ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
Specifications
Brand Name :
Anycut
Model Number :
ZKD1800-SF
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
$1284~1684/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L2160mm*W400mm*H440mm
Max.cutting width :
1500mm
Control panel :
5.0 inch touch screen
Motor :
Servo drive+Servo motor
Cutting length :
unlimited
Max.cutting speed :
1200mm/s
Max.force :
2000g
Main board :
ARM smart dual-core chip
Auto contour cut :
Camera
connect or interface :
USB cable/Udisk/web cable/WIFI
support software :
CDR/AI/PS/Contour software/signmaster(optional）
Description

ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads



- Powerful & Precise Cutting:

Delivers a 2000g cutting force with ±0.01mm accuracy and 0.082mm repeatability, handling both delicate and heavy-duty materials.


- High-Speed Performance:

Powered by a high-speed servo motor, achieving a maximum cutting speed of 1200mm/s for fast, efficient production.


- Flexible Connectivity:

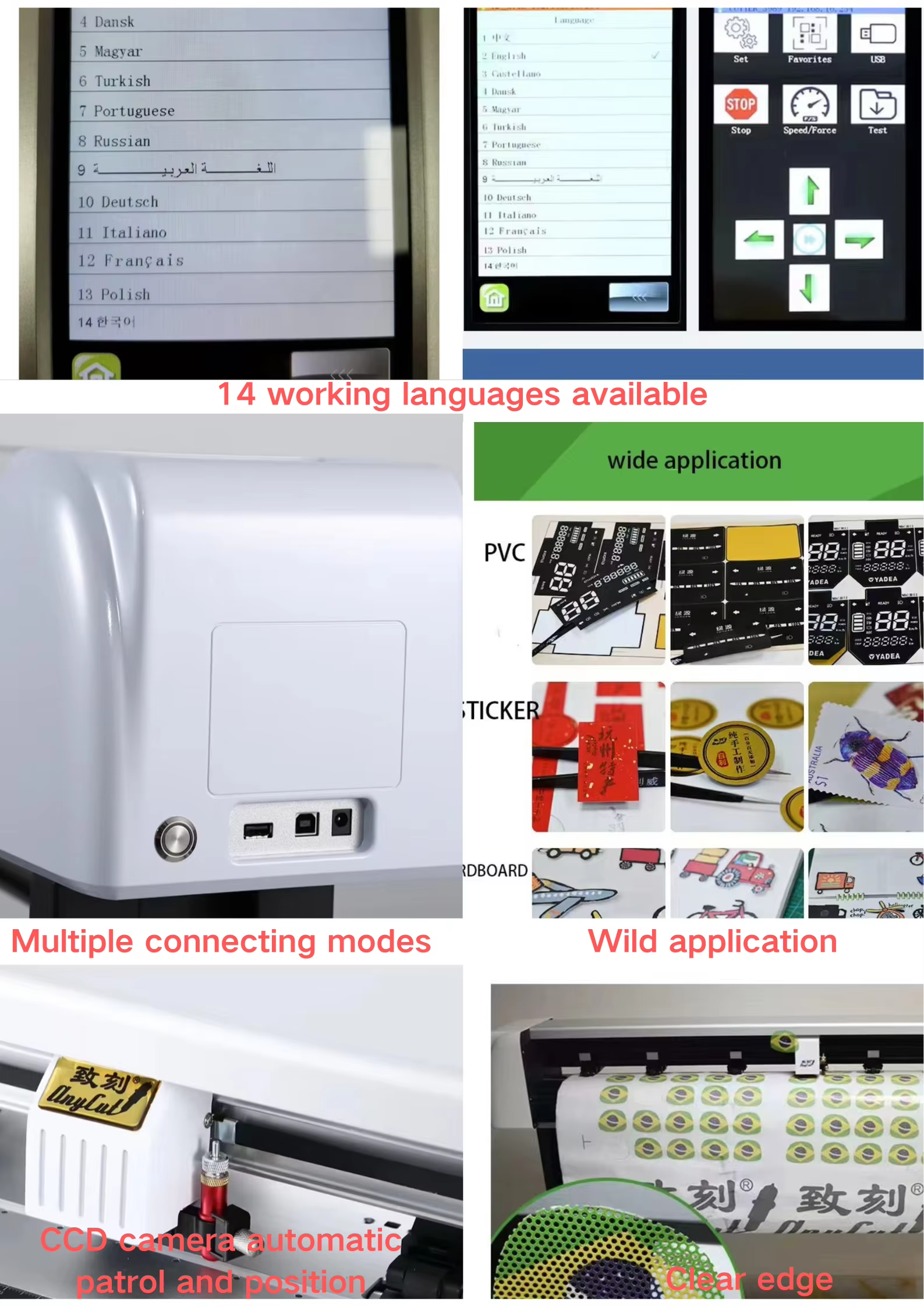

Supports USB, U-disk, web cable, and optional WiFi for seamless data transfer and workflow integration.


- User-Friendly Interface:

5.0-inch LCD touch screen for intuitive operation, compatible with all Windows systems and industry-standard design software.


- Versatile Material Handling:

Ideal for cutting reflective film, advertising materials, hollow boards, photo paper, and more, making it perfect for sign making and display production.



MODEL ZKD1800-SF
Max. media width 1500mm
Max. cutting width 1200mm
Packing size L 2160mm*W 400mm*H 440mm
Machine size L 2060mm*W 600mm*H 1100mm
Gross/Net weight 75kgs/59kgs
Control panel 5.0inch LCD touch screen
Motor Servo motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 1200mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 2
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/WIFI(optional)/Web cable(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 1G
Support system All versions of windows



ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads



ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads


ZKD1800-SF 71 Inch Large Format 1200mm/s High Speed Cutting Plotter With Double Heads
