Specifications
Brand Name :
Anycut
Model Number :
ZKSV350
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1
Price :
$856~1255/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L780mm*W580mm*H520mm
max cutting width :
330mm
auto contour cut :
camera(automatically contour cutting）
control panel :
4.3 inch touch screen
Blade type :
Rowland
max cutting material thickness :
450gsm
max cutting speed :
1500mm/s
connect or interface :
USB cable/Udisk/web cable/WIFI
support softeware :
CDR/AI/PS/Contour software/Signmaster(optional)
support system :
all version of windows
max force :
2000g
Description

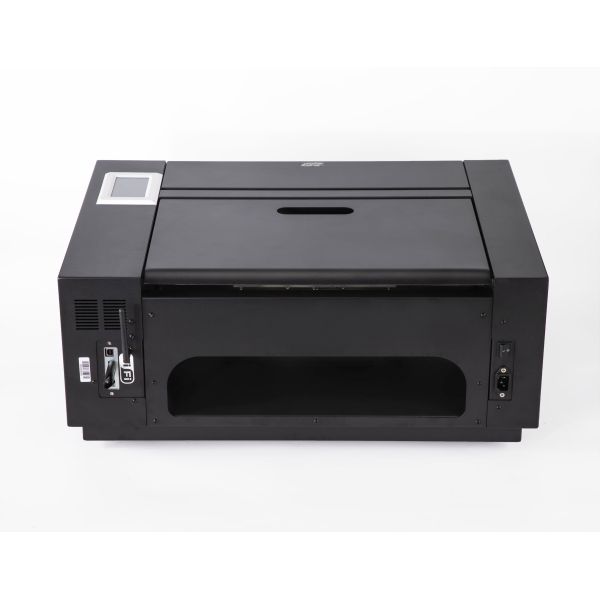

ZKSV350 Compact High Speed Servo Motor Label Cutting Machine With CCD Camera Automatic Positioning

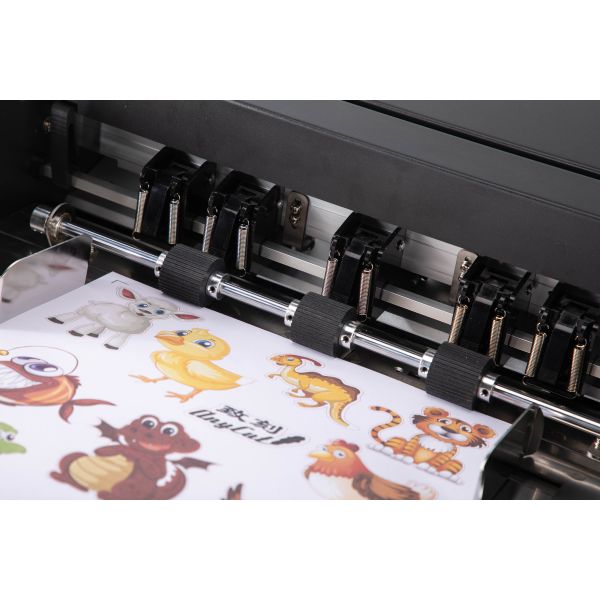

The ZKSV350 is a high-performance cutting plotter driven by a precision servo motor, delivering a maximum cutting speed of 1500mm/s for efficient production of stickers, labels, custom tags, and decals. Its dual-pressure wheel system ensures smooth, consistent material feeding, while the 2000g max pressure and Roland blade deliver clean, precise cuts on substrates up to 450gsm.

Equipped with an intelligent camera positioning system, it supports automatic contour cutting by recognizing QR codes, dot patterns, and right-angle markers, ensuring accurate alignment even for intricate, irregular designs. The user-friendly 4.3-inch touchscreen and flexible connectivity (USB, U-disk, Ethernet, WiFi) make operation seamless, and it works with all Windows systems and industry-standard design software like CDR, AI, PS, and Contour software.



MODEL ZKSV350
Max. media width 345mm,A4/A3/A3+
Max. cutting width 330mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size L 780mm*W 580mm*H 520mm
Machine size L 693mm*W 480mm*H 295mm
Gross/Net weight 52kgs/37kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1500mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory １Ｇ
Support system All versions of windows
