ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZKSV350
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1
Price :
$856~1255/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L780mm*W580mm*H520mm
max cutting width :
330mm
auto contour cut :
camera(automatically contour cutting）
control panel :
4.3 inch touch screen
Blade type :
Rowland
max cutting material thickness :
450gsm
max cutting speed :
1500mm/s
connect or interface :
USB cable/Udisk/web cable/WIFI
support softeware :
CDR/AI/PS/Contour software/Signmaster(optional)
support system :
all version of windows
max force :
2000g
Description

ZKSV350 Compact Camera Automatic Positioning Servo Motor High Pressure Die Cutting Machine



The Anycut ZKSV350 cutting machine is engineered to elevate your material processing efficiency with premium performance. Powered by a servo motor, it achieves a high cutting speed of 1500mm/s, slashing production time for bulk orders. Equipped with camera auto-positioning, it guarantees precise contour cutting with an accuracy of ±0.01mm, perfect for intricate designs on stickers, cardstock and more. Boasting a 2000g max force, it effortlessly handles thick materials up to 450gsm, expanding your processing capabilities. With USB/UDisk/WiFi multi-connection options and unlimited cutting length, it offers flexible operation for diverse workspace needs and large-format projects alike.



MODEL ZKSV350
Max. media width 345mm,A4/A3/A3+
Max. cutting width 330mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size L 780mm*W 580mm*H 520mm
Machine size L 693mm*W 480mm*H 295mm
Gross/Net weight 52kgs/37kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1500mm/s
Max.force 2000g

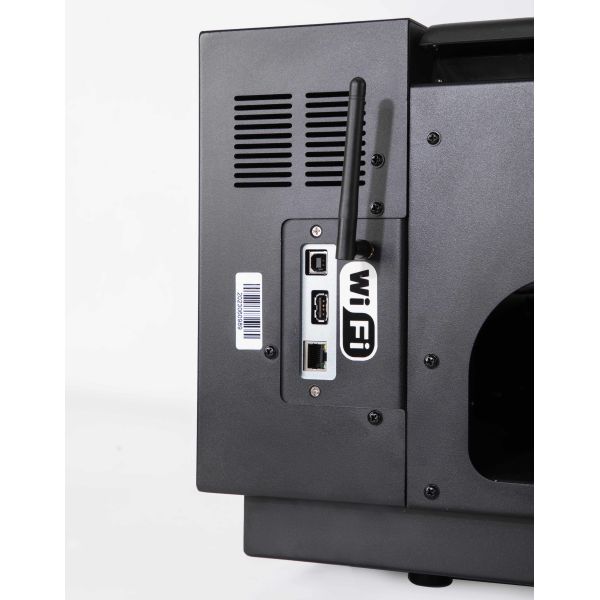

Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory １Ｇ
Support system All versions of windows
