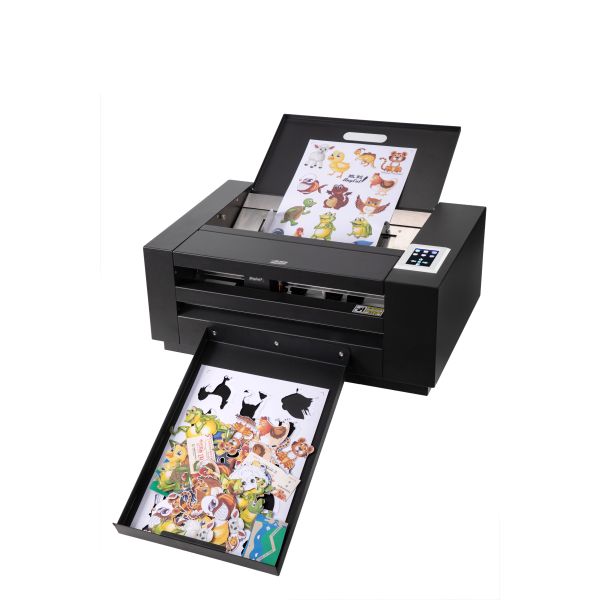

Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection
Specifications
Brand Name :
Anycut
Model Number :
ZKSV350
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
$856-1256/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Delivery Time :
20-30 work days
Packaging Details :
L 780mm*W 580mm*H 520mm
Max.material width :
345mm
Max/cutting width :
330mm
Control panel :
4.3inch Touch Screen
Max.material thickness :
450gsm
Max.cutting speed :
1500mm/s
Max.force :
2000g
Connectivity suite :
USB cable/Udisk/web cable/WIFI
Support software :
CDR/AI/PS/Contour software/Signmaster(optional)
Custom OEM/ODM :
Fully Customizable Label Printer - OEM/ODM Services Available
Drive system :
High-speed servo motor (1500mm/s speed)
Contour cutting Accuracy :
±0.01mm (CCD Auto Alignment)
Power efficiency :
<150W Low Power Consumption
Description

Servo Motor Die Cutting Machine A3 A4 Sticker Label Cutting And Canning Code Inspection



The ZKSV350 servo motor die-cutting machine:

✅ Servo Motor-Powered 1500mm/s Blazing Speed

High-performance servo motor delivers 1500mm/s cutting speed—3x faster than standard stepper models—slashing production time for sticker and label runs by up to 50%.

✅ CCD Auto Contour Cutting with ±0.01mm Precision

High-sensitivity CCD camera auto-aligns to printed edges, eliminating manual positioning and reducing scrap rates by 22% for intricate contour cuts.

✅ 2000g Max Cutting Force for Thick Materials

2000g of downforce easily cuts 450μm thick media like heat transfer vinyl and rigid sticker sheets, expanding your service capabilities to high-demand materials.

✅ QR Code + Multi-Connectivity Job Setup

QR code file retrieval, USB, WIFI, and web connectivity cut job preparation time by 60%, letting you start production instantly without technical delays.

✅ Compact Desktop Design for Small Spaces

Space-saving 345mm media width fits perfectly on workshop benches, making it ideal for small sign shops, home-based businesses, and pop-up production stations.

✅ 4.3" Intuitive Touchscreen with Multi-Language Support

4.3-inch color LCD touchscreen switches between 8+ languages, minimizing training time and enabling your entire team to operate the machine efficiently.

✅ Low-Power, Global Voltage Compatibility

100-240V adaptive power supply with <150W consumption ensures worldwide usability and reduces long-term energy costs.

✅ 24/7 Reliable Continuous Operation

Robust servo system and durable Roland blade support non-stop cutting, minimizing downtime and keeping your production line running at full capacity.


MODEL ZKSV350
Max. media width 345mm,A4/A3/A3+
Max. cutting width 330mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size L 780mm*W 580mm*H 520mm
Machine size L 693mm*W 480mm*H 295mm
Gross/Net weight 52kgs/37kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1500mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
