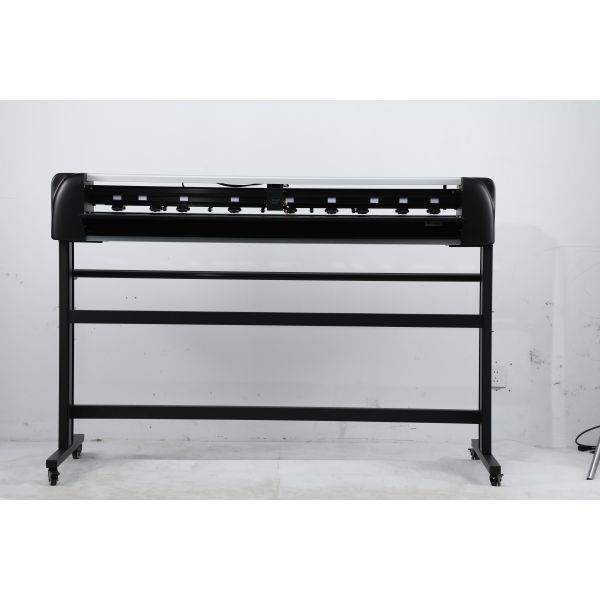

Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
Specifications
Brand Name :
Anycut
Model Number :
ZK1400-SF
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
$670~999/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L1760mm*W400mm*H440mm
Max.cutting width :
1250mm
Control panel :
5.0 inch touch screen
Motor :
Servo drive+Servo motor
Cutting length :
unlimited
Max.cutting speed :
1200mm/s
Max.force :
2000g
Main board :
ARM smart dual-core chip
Auto contour cut :
Camera
connect or interface :
USB/Udisk/Contour software/Signmaster(optional)
support software :
All versions of windows
Description

Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning

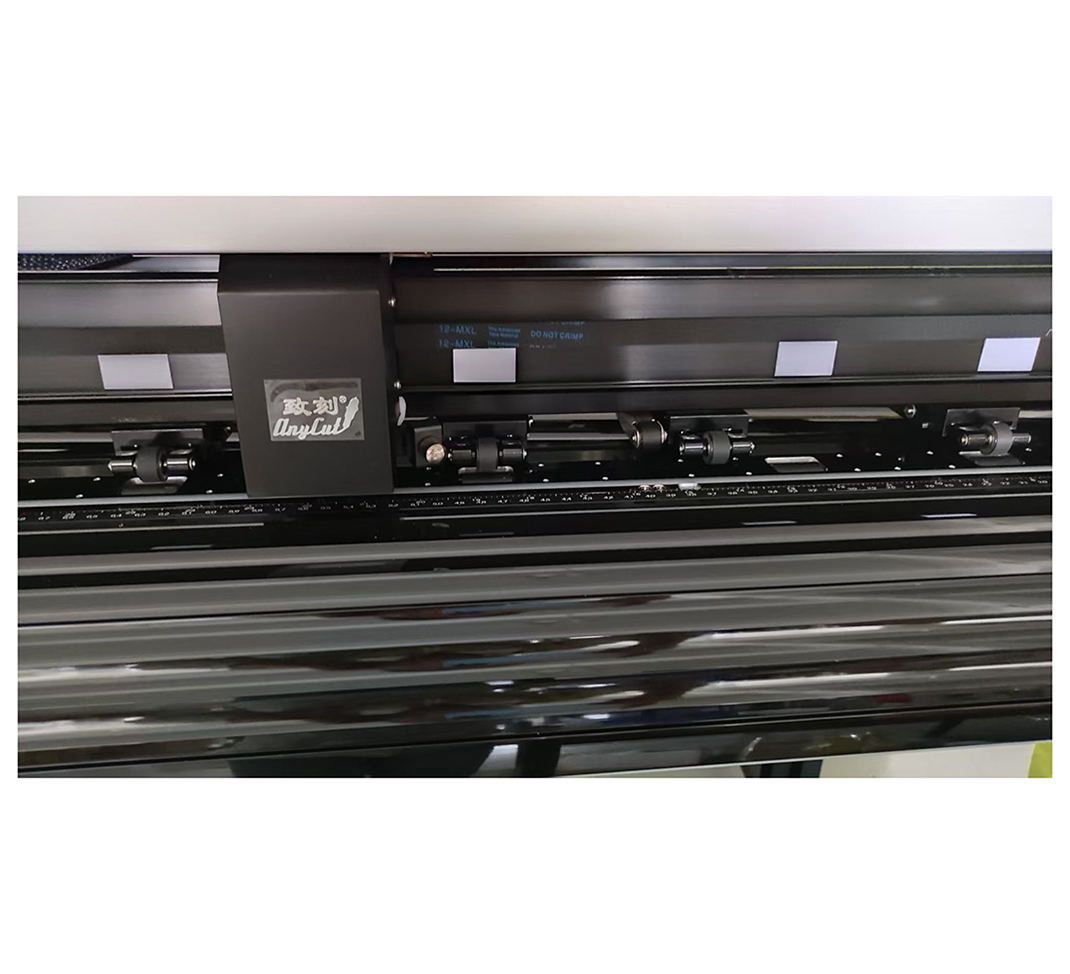

- Precision Camera Positioning:

Features an integrated camera for fully automatic contour cutting, ensuring unmatched accuracy for intricate designs.

- Superior Cutting Performance:

Delivers a powerful 2000g cutting force, achieving ±0.01mm precision with 0.082mm repeatability for consistent, professional results.

- High-Speed Efficiency:

Boasts a cutting speed of up to 1200mm/s, powered by a quiet and high-speed servo motor for fast, reliable operation.

- Flexible Connectivity:

Offers multiple connection options including USB, U-disk, web cable, and optional WiFi for seamless workflow integration.

- User-Friendly Interface:

Equipped with a 5.0-inch LCD touch screen for intuitive control, and supports all Windows operating systems for broad compatibility.

- Robust & Adaptive Design:

Built with an ARM smart dual-core mainboard, and an adaptive power supply (100v-240v), making it suitable for diverse global work environments (+5°C ~ +35°C).

- Versatile Application:

Handles a wide range of materials including reflective film, advertising reflective film, hollow boards, photo printing materials, and more, making it ideal for sign making, display production, and graphic finishing.



MODEL ZK1400-SF
Max. media width 1400mm
Max. cutting width 1250mm
Packing size L 1760mm*W 400mm*H 440mm
Machine size L 1650mm*W 600mm*H 1100mm
Gross/Net weight 42kgs/36kgs
Control panel 5.0inch LCD touch screen
Motor Servo drive + Servo motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 1200mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 1
Number of Y motor 1
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/web cable/WIFI(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 128MB
Support system All versions of windows



Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning


Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera PositioningAnycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning


Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
