Specifications
Brand Name :
Anycut
Model Number :
ZK1400-SF
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
$670~999/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L1760mm*W400mm*H440mm
Max.cutting width :
1250mm
Control panel :
5.0 inch touch screen
Motor :
Servo drive+Servo motor
Cutting length :
unlimited
Max.cutting speed :
1200mm/s
Max.force :
2000g
Main board :
ARM smart dual-core chip
Auto contour cut :
Camera
connect or interface :
USB/Udisk/Contour software/Signmaster(optional)
support software :
All versions of windows
Description

Large Format Quiet And High Speed Servo Motor Vinyl Wrap Flex Banner Poster

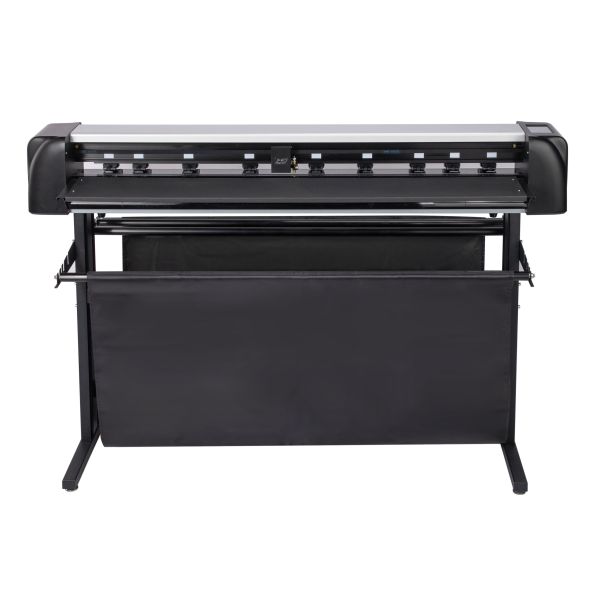

The ZK1400-SF is a high-performance, large-format cutting plotter built for industrial-scale production and precision graphics work. Its standout feature is camera automatic positioning, which accurately detects registration marks for precise contour cutting of pre-printed designs.

Powered by a servo motor, it delivers a blistering cutting speed of up to 1200mm/s with minimal noise, while its 2000g super force easily slices through ultra-thick materials including reflective film, PVC adhesive, photo paper, and light box panels.

Boasting a maximum media width of 1400mm and ±0.01mm cutting accuracy, the ZK1400-SF combines speed with exceptional precision. Its ARM smart dual-core chip and servo drive system ensure consistent performance even under continuous heavy use. It features a stable floor stand, is compatible with all Windows systems, and supports industry-standard software like SignMaster. Whether you’re producing large batches of stickers, vehicle wraps, or industrial stencils, the ZK1400-SF is engineered to handle your most demanding cutting tasks with speed and reliability.



MODEL ZK1400-SF
Max. media width 1400mm
Max. cutting width 1250mm
Packing size L1760mm*W400mm*H440mm
Machine size L1650mm*W600mm*H1100mm
Gross/Net weight 42kgs/36kgs
Control panel 5.0inch LCD touch screen
Motor Servo drive + Servo motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 1200mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 1
Number of Y motor 1
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/web cable/WIFI(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 1G
Support system All versions of windows
