ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding
Specifications
Auto contour cut :
Automatically camera contour cutting
Camera positioning accuracy :
±0.1mm
Tool head configuration :
Dual independent heads (Cutting + Creasing)
Suitable cutting material :
Self-adhesive sticker/coated paper/PVC
Positoning mode :
Qr code/Dot/Right angle
Integrated processing capability :
Full cut/Half cut/Creasing in one pass
Key Selling Points :
Kiss Cut, Perforated Cut, Flex Cut
Max. cutting speed :
1600mm/s
Related Machine Type :
Die Cut Machine, Craft Cutter, Label Maker
Support software :
CDR/AI/PS/Contour software/Signmaster(optional)
MaxMedia feeding capacity :
1000 Sheets per Batch
Brand Name :
Anycut
Model Number :
ZKSVD600PRO_RL
Certification :
CE/FCC/RoHS
Place of Origin :
Anhui
MOQ :
1 piece
Price :
$3280-5000/piece
Supply Ability :
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Delivery Time :
20-30 work days
Packaging Details :
Host machine: L 1220mm*W 1220mm*H 780mm; Cabinet: L 1170mm*W 1150mm*H 860mm
Motor :
High speed servo motor
Payment Terms :
T/T,Western Union
Material compatibility :
Corrugated cardboard, PVC, Adhesive Vinyl, Coated paper (up to 600gsm)
Max. cutting width :
600mm
Description

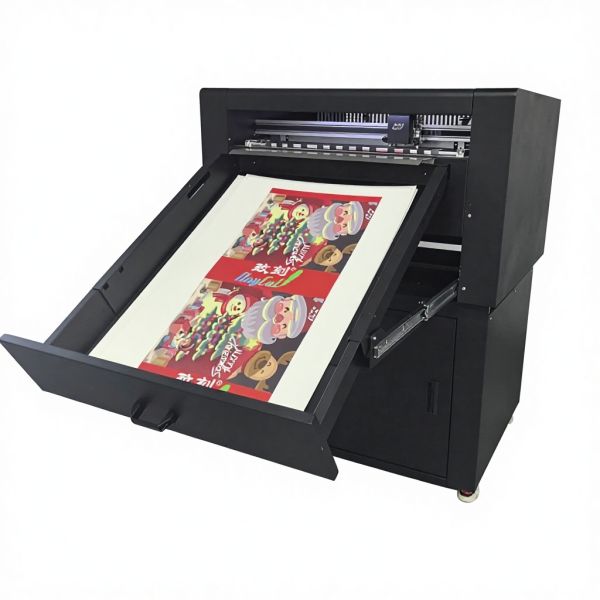

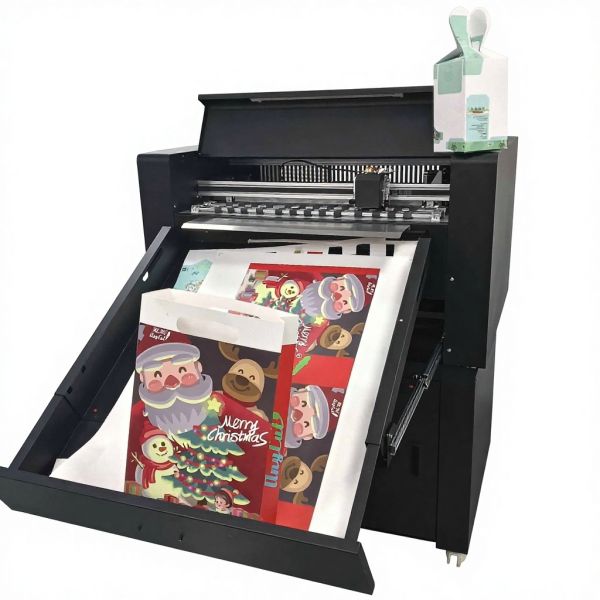

ZKSVD600PRO_RL Carton Rotary Die Cutting Plotter Suction-type Fully Automatic Paper Feeding



The ZKSVD600PRO_RL is an upgraded high-end die-cutting machine , featuring core adsorption wheel indentation and suction-type fully automatic paper feeding technology.

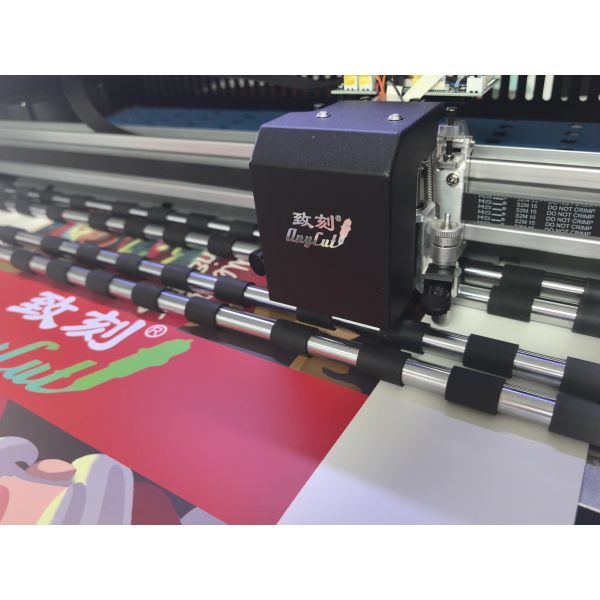

✅ High-Speed Servo Motor & Dual Tool Heads

1600mm/s cutting speed with dual independent heads for cutting and creasing, slashing production time for packaging and labels by 40%.

✅ 1000-Sheet Vacuum Auto-Feeder

Adsorption-style feeder eliminates static and double-feeding issues, enabling non-stop high-volume runs of up to 1000 sheets at once.

✅ All-in-One Cutting & Creasing

Handles full cut, half cut, and creasing in a single pass, ideal for retail packaging, luxury gift boxes, and promotional materials.

✅ AI Camera Contour Cutting

High-precision camera auto-detects registration marks, ensuring ±0.02mm accuracy for intricate shapes like custom hang tags and die-cut labels.

✅ Multi-Connectivity & Offline Operation

Supports WiFi, Ethernet, USB, and U-disk offline use, with direct integration to AI and CorelDRAW for seamless workflow.

✅ Heavy-Duty Versatility

This cutting plotter is 3000g cutting force handles materials up to 600gsm, including corrugated cardboard, PVC, and adhesive vinyl, covering all small business packaging needs.

MODEL ZKSVD600PRO_RL
Max. media width 650mm
Max. cutting width 600mm
Auto contour cut Camera (automatically contour cutting)
Control panel 5.0inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size

Host machine:

L 1220mm*W 1220mm*H 780mm;

Cabinet: L 1170mm*W 1150mm*H 860mm
Machine size L 1050mm*W 1050mm*H 1200mm
Gross/Net weight 343kgs/237kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 600gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
