Specifications
Brand Name :
Anycut
Model Number :
ZKSVD600PRO_RL
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
￥$4824~5680/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/3days;5~30pieces/15 days;31~100pieces/20days
Delivery Time :
20~30 work days
Packaging Details :
L1050mm*W930mm*H1130mm
max cutting width :
600mm
Auto contour cut :
Camera(automatically contour cutting)
Control panel :
5.0 inch touch screen
Positioning mode :
Qr code/Dot/Right angle
Max material thickness :
600gsm
Max cutting speed :
1600mm/s
Max force :
3000g
Connect or interface :
USB cable/Udisk/web cable/WIFI
Suitable cutting material :
Self-adhesive sticker/coated paper/PVC
Support software :
CDR/AI/PS/Contour software/Signmaster(optional）
Description

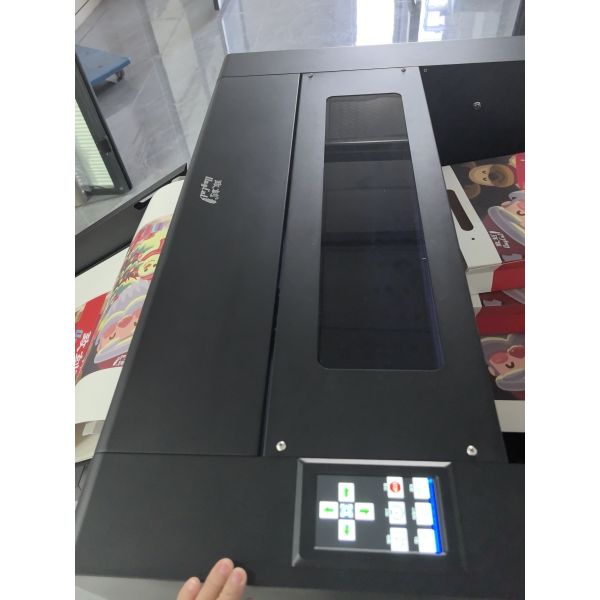

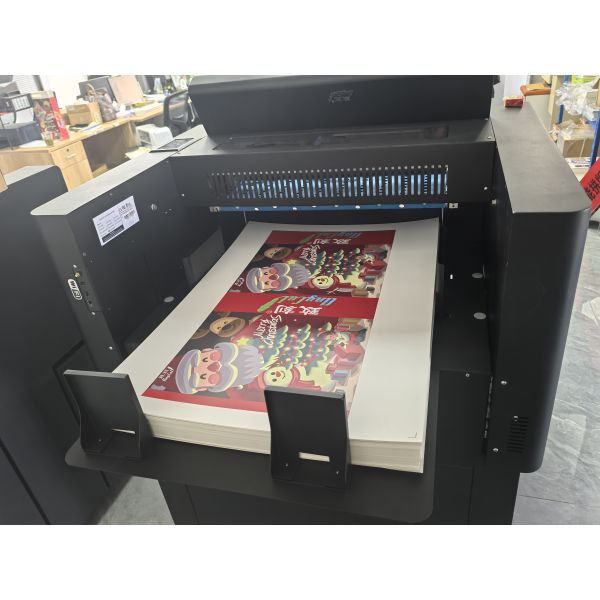

Dual Heads High Speed Adsorption Wheel Indentation Full Cut and Half Cut Cutting Machine



1.Efficient & High-Volume Feeding


- The max cutting width is 600mm.
- 1000-sheet automatic feeding drastically reduces manual handling and boosts productivity.

- Adsorption-type paper feeding with anti-static technology ensures no double-feeding, minimizing paper jams and waste.

2. Precision & Consistency

- High-speed servo motors + ±0.01mm cutting accuracy deliver crisp, clean results every time.

- Dual knife heads (Rowland Blade) and 2 positioning modes (QR code, left/right angle) ensure reliable, repeatable performance.

3. Smart Connectivity & Control

- WiFi, USB, and network connectivity support one machine linking to multiple computers, enabling flexible workshop setups.

- 5.0-inch touchscreen and offline USB operation offer intuitive control and easy job management.



MODEL ZKSVD600PRO_RL
Max. media width 650mm
Max. cutting width 600mm
Auto contour cut Camera (automatically contour cutting)
Control panel 5.0inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 1140mm*W 930mm*H 1130mm
Machine size L 1050mm*W 1050mm*H 1200mm
Gross/Net weight 222kgs/176kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 600gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
