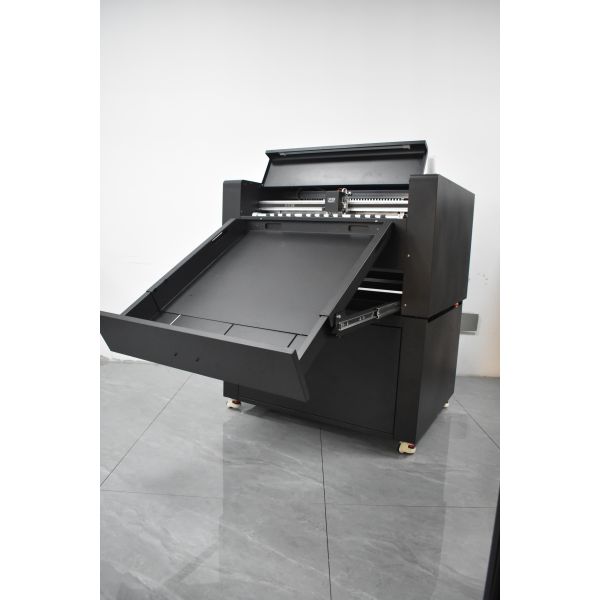

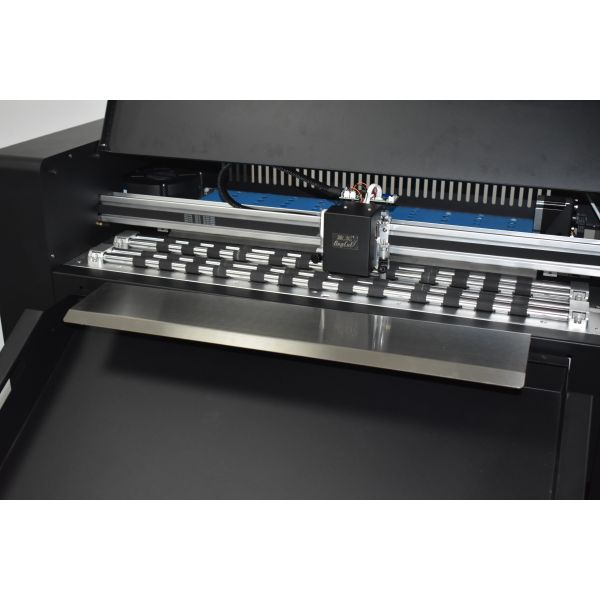

2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZKSVD600PRO_RL
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
￥$4824~5680/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/3days;5~30pieces/15 days;31~100pieces/20days
Delivery Time :
20~30 work days
Packaging Details :
L1050mm*W930mm*H1130mm
max cutting width :
600mm
Auto contour cut :
Camera(automatically contour cutting)
Control panel :
5.0 inch touch screen
Positioning mode :
Qr code/Dot/Right angle
Max material thickness :
600gsm
Max cutting speed :
1600mm/s
Max force :
3000g
Connect or interface :
USB cable/Udisk/web cable/WIFI
Suitable cutting material :
Self-adhesive sticker/coated paper/PVC
Support software :
CDR/AI/PS/Contour software/Signmaster(optional）
Description

2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine


  • High-Efficiency Production: 1,000-sheet auto feed, 1600mm/s high cutting speed, dual-head trolley for faster throughput
  • Superior Material Handling: Suction feed eliminates static & double-feeding, cuts up to 600gsm materials (stickers, cards, bags, boxes, etc.)
  • Precision Cutting: ±0.01mm accuracy, 0.082mm repeatability, camera auto contour cutting for perfect results
  • Versatile Connectivity: WIFI/USB/network/U-disk offline, compatible with all Windows systems & Signmaster/CDR/AI/PS software
  • All-in-One Function: Full cut, half cut, crease & cut in one pass, ideal for custom business cards, hang tags, packaging & more


MODEL ZKSVD600PRO_RL
Max. media width 620mm
Max. cutting width 600*900mm
Auto contour cut Camera (automatically contour cutting)
Control panel 5.0inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 1140mm*W 930mm*H 1130mm
Machine size L 1050mm*W 1050mm*H 1200mm
Gross/Net weight 222kgs/176kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 600gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows



2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine



2026 New Model Suction-type Rotary Wheel A3/A4 Servo Motor Die Cutting Machine
