High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
High Precision 1200mm/s Servo Vinyl Cutter Machine 2000g Force Dual Head Cutting Plotter with WIFI for Commercial Use
Specifications
Brand Name :
Anycut
Model Number :
ZKD1000-SF
Certification :
CE/FCC/RoHS
Place of Origin :
Anhui
MOQ :
1 piece
Price :
$885-1113/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Delivery Time :
20-30 work days
Packaging Details :
L2110mm*600mm*440mm
Item :
Automatic patrol edge vinyl cutting plotter ZK1000-SF
Max.media width :
1000mm
Max.cutting width :
700mm
Control panel :
5.0 Inch LCD Touch Screen
Number of heads :
2
Auto contour cut :
Camera(automatically contour cutting)
Drawing instruction :
Automatic recognition DMPI and HPGL
Connect or interface :
USB cable/Udisk/WIFI(optional)
Support software :
CDR/AI/PS/Contour software/signmaster(optional)
Memory :
1G
Motor :
1200mm/s Servo motor
Main board :
ARM smart dual-core chip
Description
ZKD1000-SF Dual-Head Label Cutter: 1200mm/s Servo Motor & Camera Positioning for Stickers/PVC

The ZKD1000-SF is a high-speed servo-driven dual-head cutting plotter designed for the graphic design, label printing, and sign-making industries. Equipped with a 1000mm industrial-grade mechanism and featuring camera auto-positioning, 2000g force, and dual-head operation, it supports one-click full cut, half cut, and creasing. It is the ideal tool to boost productivity and reduce labor costs for print shops.

1.Camera Auto Registration:
Built-in HD camera for precise mark detection and automatic skew correction. Eliminates manual alignment, compensates for media stretch, and ensures ±0.01mm contour cutting accuracy.
2.High-Speed Servo Drive:
High-speed servo motor delivers a top speed of 1200mm/s, 50% faster than stepper motors for rapid batch production.

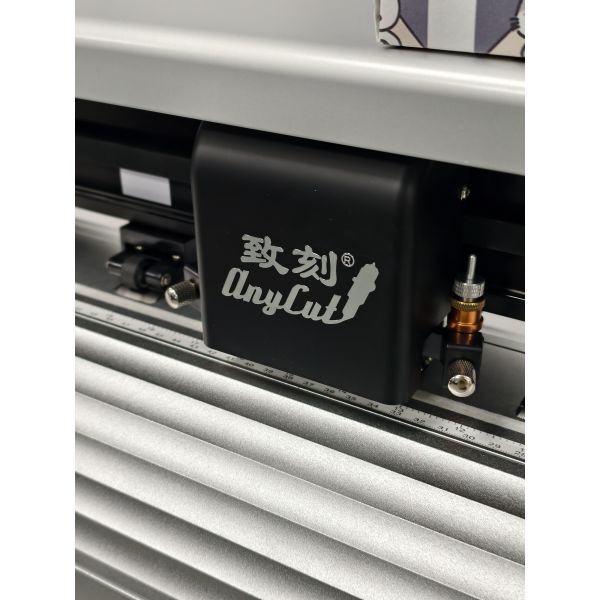

3.Dual-Knife Carriage:
Simultaneous dual-head cutting for parallel processing of different jobs. Supports combined processes (half cut + full cut / crease + cut) to double productivity.
4.2000g Max Force:
Delivers strong cutting force to handle rigid materials like PVC, crystal labels, reflective films, and thick cardstock in a single pass.
5.WIFI Wireless Connection:
Wireless data transmission for freedom from cables. Easy multi-device connectivity with a 5-inch touch screen for smooth operation.
6.Wide Software Compatibility:
Works with all Windows versions and major software AI, CDR,and PS files for direct production.

Item Automatic patrol edge vinyl cutting plotter ZKD1000-SF
MODEL ZKD1000-SF
Max. media width 1000mm
Max. cutting width 700mm
Packing size L 1360mm*W 400mm*H 440mm
Machine size L 1250mm*W 600mm*H 1100mm
Gross/Net weight 36kgs/30kgs
Control panel 5.0inch LCD touch screen
Motor Servo motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 1200mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 2
Blade type Rowland blade

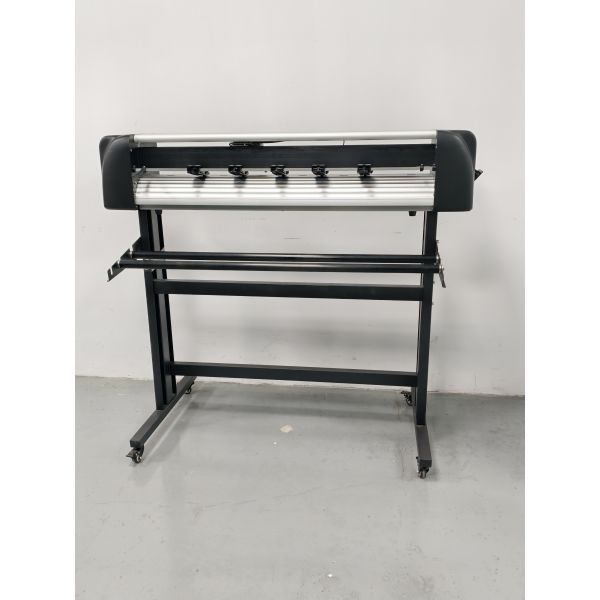

Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/WIFI(optional)/Web cable(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 1G
Support system All versions of windows
