1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZKD1000-SF
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1piece
Price :
$884~1113/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/ 15 days;31~100 pieces/20 days
Delivery Time :
20-30 work days
Packaging Details :
L1360mm*W400mm*H440mm
Max.cutting width :
700mm
Control panel :
5.0 inch touch screen
Motor :
Servo motor
Cutting length :
Unlimted
Max.cutting speed :
1200mm/s
Main board :
ARM smart dual-core chip
Auto contour cut :
Camera
Memory :
128MB
connect or interface :
USB cable/Udisk/WIFI/web cable(optional)
support software :
CDR/AI/PS/Contour software/signmaster
Description

1200mm/s Double Head Adhesive Sheet Die Cutting Machine Label Half Cutter Kiss Cutting Machine



Equipped with a high-speed servo motor, the ZKD1000-SF is a professional cutting plotter designed for precision and efficiency in sign-making, label production, and graphic applications. It features dual knife heads for versatile cutting tasks, a 2000g super cutting force, and camera automatic positioning to ensure accurate alignment of printed materials.

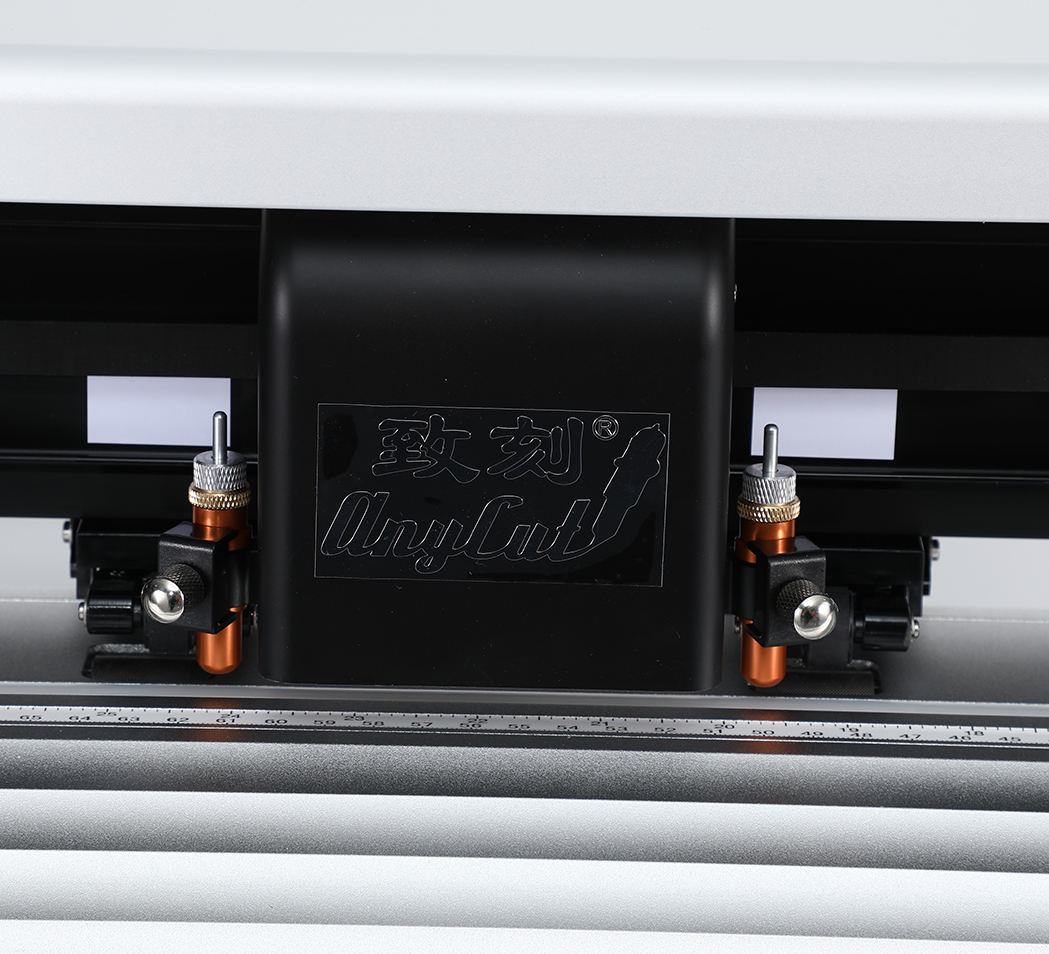

- Dual Knife Head Carriage:

Enables seamless switching between cutting modes, supporting full cut, half cut, creasing, and kiss-cut operations.


- Smart Connectivity:

Offers WiFi wireless connection, USB cable, and optional network port for flexible data transfer.


- High Performance:

Delivers a maximum cutting speed of 1200mm/s with ±0.01mm cutting accuracy, ensuring fast and precise results.


- Wide Compatibility:

Works with Roland blades and supports industry-standard software like CDR, AI, PS, and Contourcut, along with all Windows operating systems.



MODEL ZKD1000-SF
Max. media width 1000mm
Max. cutting width 700mm
Packing size L1360mm*W400mm*H440mm
Machine size L1250mm*W600mm*H1100mm
Gross/Net weight 36kgs/30kgs

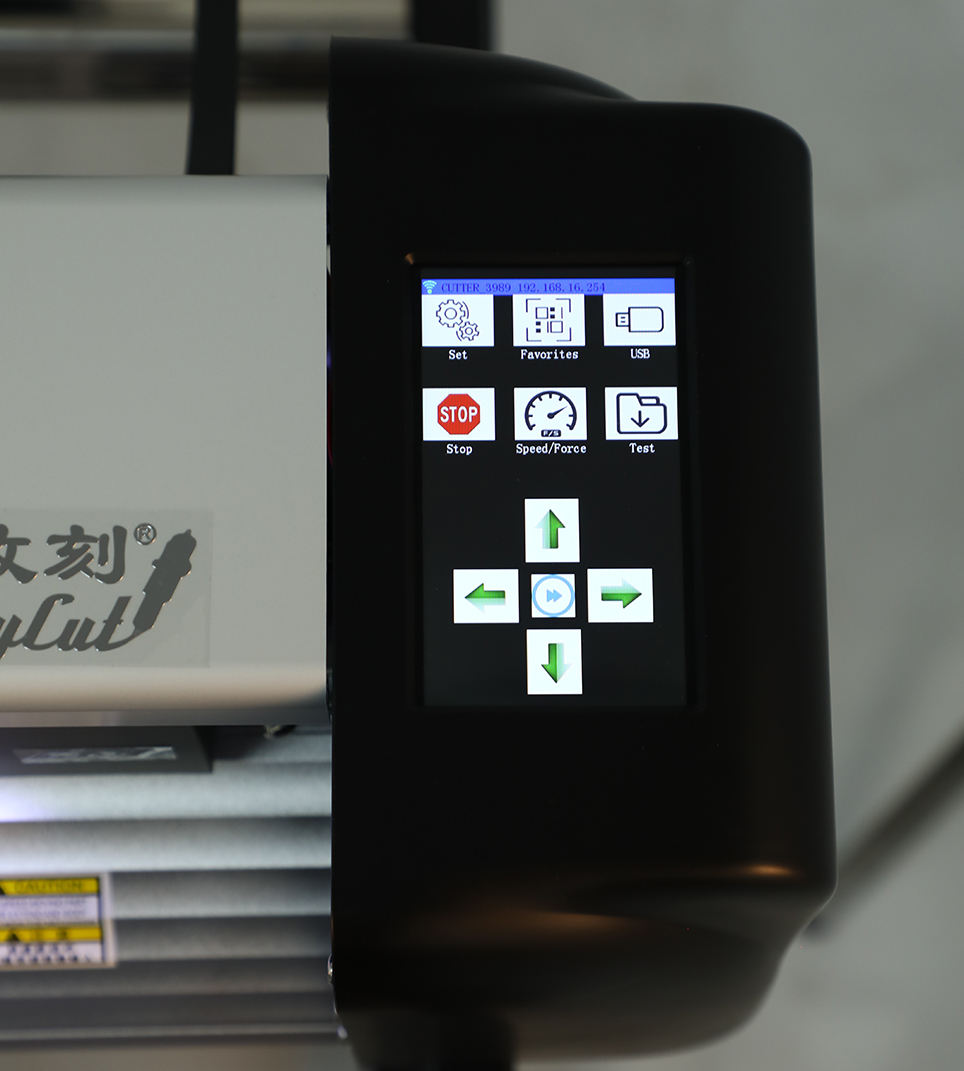

Control panel 5.0inch LCD touch screen
Motor Servo motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 1200mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 2
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/WIFI(optional)/Web cable(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 1G
Support system All versions of windows
