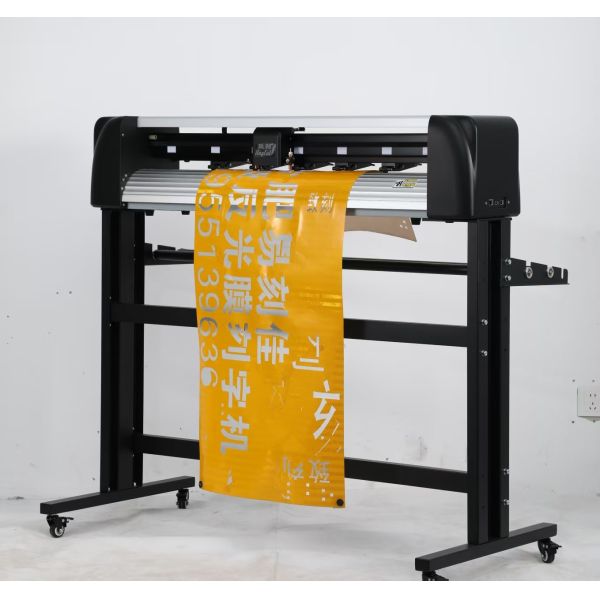

Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
Specifications
Brand Name :
Anycut
Model Number :
ZKD1000-SF
MOQ :
1piece
Price :
$884~1113/piece
Payment Terms :
T/T,Western Union
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
Supply Ability :
1~4 pieces/2 days;5~30 pieces/ 15 days;31~100 pieces/20 days
Delivery Time :
20-30 work days
Packaging Details :
L1360mm*W400mm*H440mm
Max.cutting width :
700mm
Control panel :
5.0 inch touch screen
Motor :
Servo motor
Cutting length :
Unlimted
Max.cutting speed :
1200mm/s
Main board :
ARM smart dual-core chip
Auto contour cut :
Camera
Memory :
128MB
Description

Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision

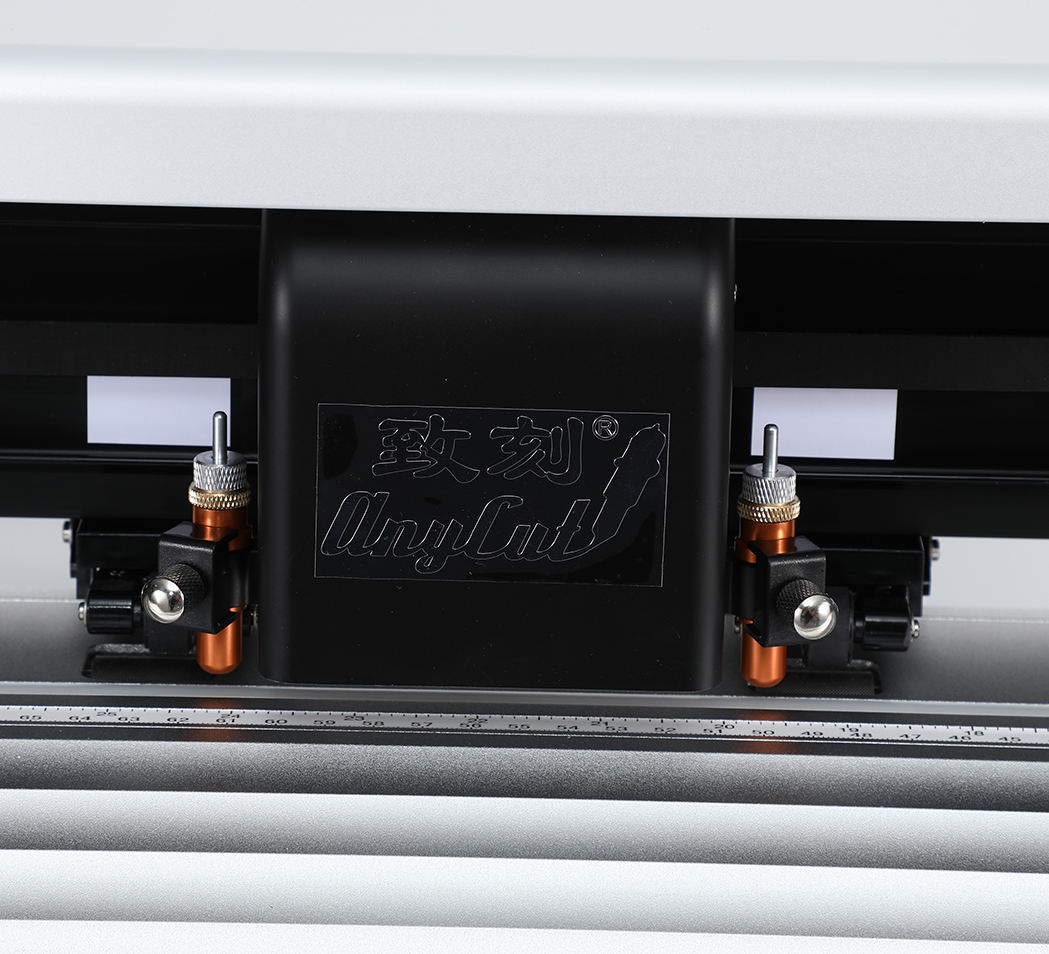

The ZKD1000-SF is a multi-functional cutting machine centered on dual-head servo + intelligent positioning advantages. Equipped with dual working heads and high-speed servo motors, paired with a camera automatic positioning system, it can simultaneously complete multi-process operations (half-cut, full-cut, creasing, etc.) while accurately capturing pattern contours, enabling integrated "positioning-cutting" workflow.

Combining 2000g ultra-high pressure with ±0.01mm-level precision, it can handle delicate materials like crystal labels and PVC adhesive with high efficiency, as well as stably cut batch materials such as car stickers and labels. Its 1200mm/s high-speed operation also drastically reduces production time. Supporting multi-mode connectivity (WiFi, wired network, etc.),it offers smooth and user-friendly operation, and is compatible with all Windows systems and mainstream design software. It’s a "high-efficiency + precision + versatility" production tool for advertising signs, decorative materials and other fields.



MODEL ZKD1000-SF
Max. media width 1000mm
Max. cutting width 700mm
Packing size L1360mm*W400mm*H440mm
Machine size L1250mm*W600mm*H1100mm
Gross/Net weight 36kgs/30kgs
Control panel 5.0inch LCD touch screen
Motor Servo motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 1200mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 2
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/WIFI(optional)/Web cable(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 1G
Support system All versions of windows
