Specifications
Brand Name :
Anycut
Model Number :
ZKD1550-SF
MOQ :
1piece
Price :
$1070~1398/piece
Payment Terms :
T/T,Western Union
Certification :
CE/FCC/Rohs
Place of Origin :
Shenzhen
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L1810mm*W400mm*H440mm
Max.cutting width :
1250mm
Control panel :
5.0 inch LCD touch screen
Motor :
Servo motor
Cutting length :
Unlimited
Max.cutting speed :
1200mm/s
Max. force :
2000g
Main board :
ARM smart dual-core chip
Auto contour cut :
camera
Description

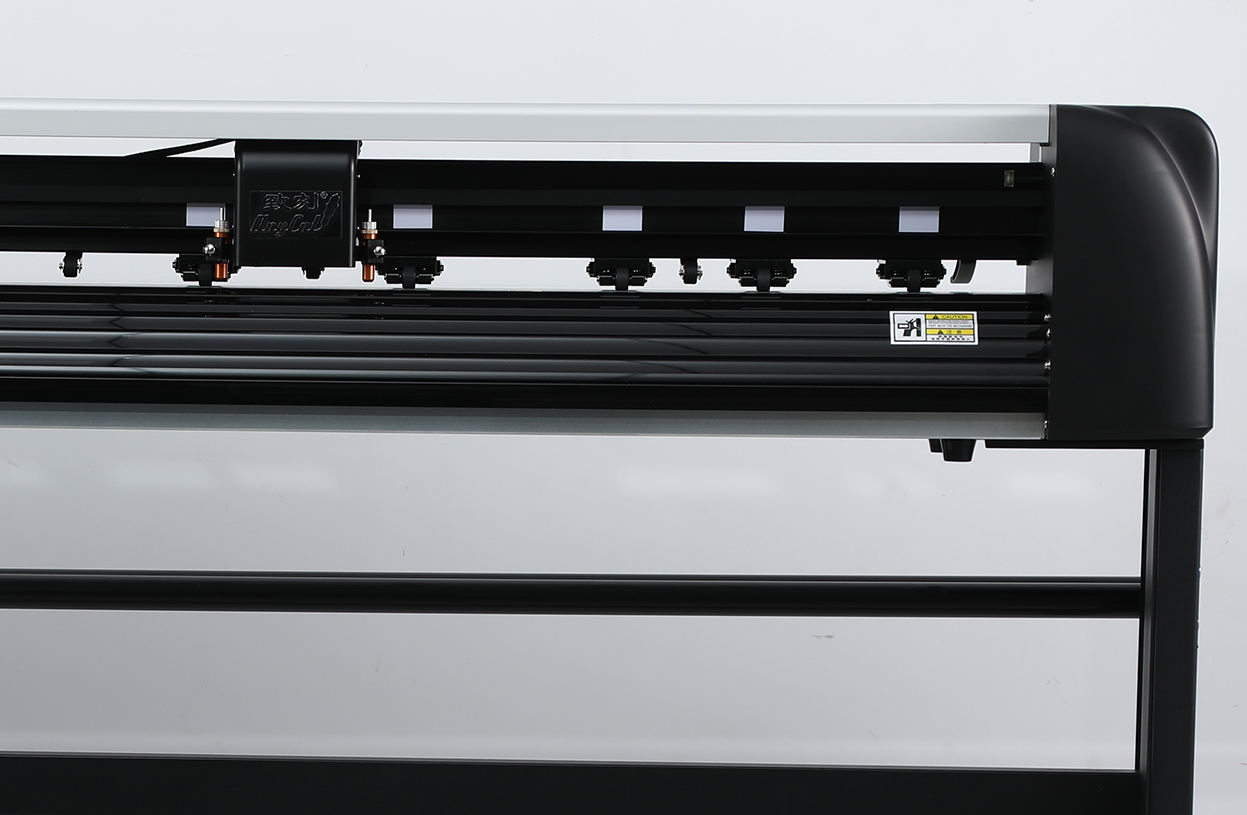

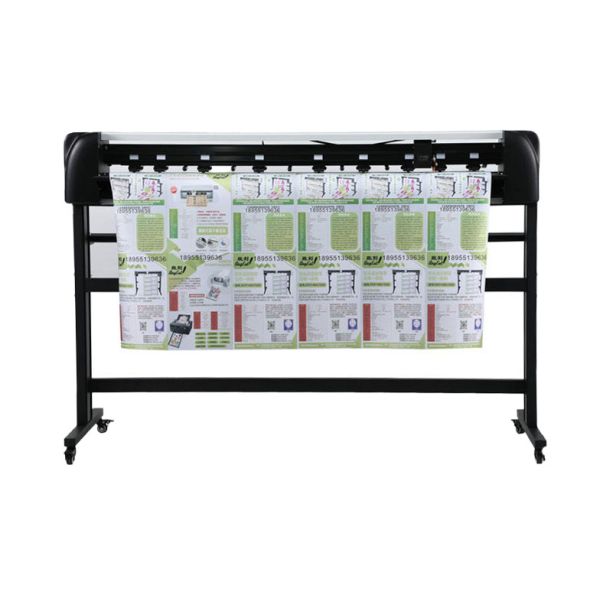

Anycut 59 Inch Dual-Head Servo Smart Cutting Plotter Intelligent Positioning High-Pressure Multi-Function



The ZKD1550-SF is a high-speed multi-process cutting machine featuring dual-head servo dual-effect + intelligent visual precision control. It eliminates the time spent on process switching with single-head equipment, while combining 2000g ultra-high pressure and ±0.01mm-level precision to balance the cutting quality of delicate materials (such as reflective film and wall stickers) and the production efficiency of batch materials (such as car stickers and signs).

With a high operating speed of 1200mm/s and dual connectivity (WiFi/wired network), the machine adapts to the network environments of different workshops. The combination of a 5.5-inch touch screen and an ARM smart dual-core mainboard not only simplifies the operation process but also supports all Windows systems and mainstream design software. From the refined production of advertising signs to the mass processing of decorative materials, the ZKD1500-SF, with its core advantages of "dual-head fast cutting + intelligent positioning precision control", serves as a high-efficiency tool for multi-scenario production.



MODEL ZKD1550-SF
Max. media width 1550mm
Max. cutting width 1250mm
Packing size L1810mm*W400mm*H440mm
Machine size L1700mm*W600mm*H1100mm
Gross/Net weight 50kgs/42kgs
Control panel 5.0inch LCD touch screen
Motor Servo motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 1200mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 2
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/WIFI(optional)/Web cable(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 1G
Support system All versions of windows
