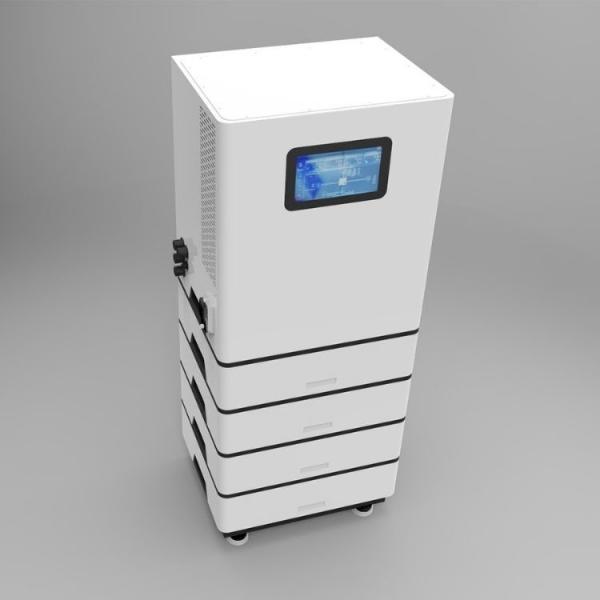

204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS
204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS
204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS
204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS
Specifications
Brand Name :
HEYI
Model Number :
204.8V
Certification :
UN38.3 , MSDS , IS9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD998~4980
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1 GWH
Delivery Time :
10 working days
Packaging Details :
wooden case
Name :
High Voltage Lithium Battery
Rated voltage range :
204.8V
Energy :
20Kwh
Bms :
Built-in BMS Protection
Case Material :
Metal
Rechargeable :
Yes
Battery Cell :
LifePO4
Application :
Customize by use
Inverter :
built-in
Description

200V High Voltage Battery System All In One 20kwh High Voltage Battery System

The 200V 20kWh LiFePO₄ Stackable Battery System is a modular high-voltage energy solution built for home and business energy storage applications. With a built-in inverter and intelligent BMS, it ensures safe operation, real-time monitoring, and efficient energy conversion. Its space-saving stackable design makes it ideal for solar storage, backup power, or grid support.

204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS

Integrated High-Voltage Lithium Storage System
Combining LiFePO₄ batteries with inverter options (8kW–15kW), this all-in-one system delivers compact, efficient storage for residential power needs.

Tool-Free Setup
Stackable modules and built-in wheels allow for fast deployment and repositioning.

Smart Connectivity
Supports CAN, RS232, and RS485 communication for compatibility with major energy management platforms.

Versatile Usage
Suited for hybrid and off-grid systems across various home energy applications.

Durable Performance
Built with top-grade lithium cells rated for up to 8000 cycles, with a 10-year product warranty.

Expandable Capacity
Available in 5kWh to 35kWh versions—scalable to meet future energy demands.

Confidently power your home with this intelligent, expandable LiFePO₄ storage system.

204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS

204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS

204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS

Specifications :

Battery Specifications
Battery Ptype LiFePO4
Rated voltage range 153.6~358.4V
Rated capacity range 15kwh ~35kwh
Max Charge/Discharge Current 50A/100A
System Performance
Operating Temperature -15°C~55°C
Working Altitude 0-2000m
Waterproof Level IP20
BMS Communication CAN
Electricity CommunicationPort RS485
Cooling Method Cooling Fans
Output Waveform Pure Sine Wave
Switching time 10ms
Max efficiency 98.20%
European efficiency 97.50%
MPPT efficiency 99.5%
Noise Level <35dB
Warranty 5 years
Inverter Specifications
Phase selection Single-phase/Three-phase
Inverter options 8/10/12/15 KW
Inverter voltage range 125~600VA
Grid voltage range 360~440V
PV input power 4KW
Max.PV charge current 80A
AC charge current 60A
Rated output power 10KW
Max DC Input Voltage 1000V
MPPT Work Voltage Range 125~850V
Start Voltage 125V
Rated output voltage 400V,3W+N+PE
Rated frequency(Hz) 50Hz/60Hz
Mechanical Specifications
Inverter dimensions 600*400*850mm
Inverter weight 75.6KG
Battery module dimensions 600*400*200mm
Battery module weight 46.9KG
Base dimensions 600*400*55mm
Base weight 10.8KG

204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS

204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS

204.8V All In One Lithium Battery 20kwh HV Lithium Battery Built In BMS
