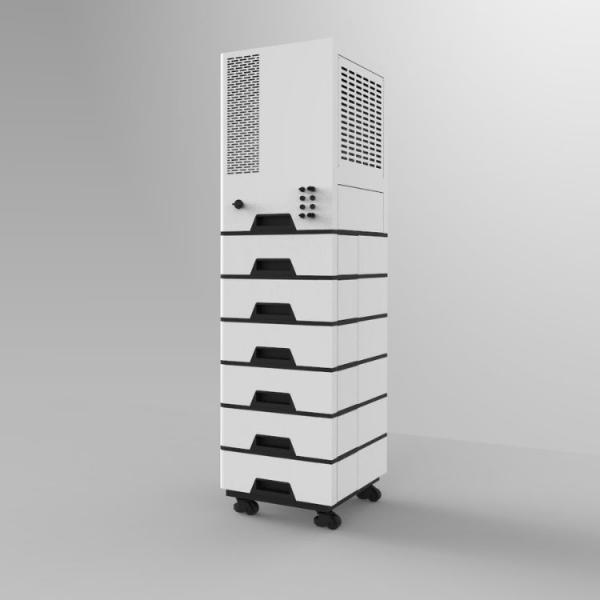

Bess 307V High Voltage Lithium Battery Modular Energy Storage System
Bess 307V High Voltage Lithium Battery Modular Energy Storage System
Bess 307V High Voltage Lithium Battery Modular Energy Storage System
Bess 307V High Voltage Lithium Battery Modular Energy Storage System
Specifications
Brand Name :
HEYI
Model Number :
307V
Certification :
UN38.3 , MSDS , IS9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD998~4980
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1 GWH
Delivery Time :
10 working days
Packaging Details :
wooden case
Name :
High Voltage Lithium Battery
Rated voltage range :
307V
Energy :
30Kwh
Bms :
Built-in BMS Protection
Case Material :
Metal
Rechargeable :
Yes
Battery Cell :
LifePO4
Application :
Customize by use
Description

Battery Energy Storage Systems Bess High Voltage 307V High Voltage Modular Energy Storage

Our 30kWh 307.2V LiFePO₄ battery system is engineered for high-efficiency power storage in residential and industrial settings. Featuring a modular format with stacking capability, integrated inverter, and intelligent BMS, this solution ensures operational safety, expandability, and seamless integration with new or existing energy setups..

Bess 307V High Voltage Lithium Battery Modular Energy Storage System

High-Efficiency Residential Battery Module
Our lithium battery system delivers up to 15kW inverter power with integrated LiFePO₄ technology, tailored for home energy storage.

Fast Installation, Stack Design
Modular format and base wheels simplify installation and relocation.

Multi-Protocol Support
CAN, RS232, RS485 protocols ensure wide inverter compatibility and efficient system communication.

Flexible System Integration
Compatible with various setups, including backup, solar hybrid, and off-grid systems.

High-Endurance Power
Rated for up to 8000 cycles, this system ensures long-term value with a 10-year coverage.

Adaptable to Your Needs
Customizable energy capacity from 5kWh to 35kWh to meet your household’s energy evolution.

Empower your energy future with a modular system built for reliability and simplicity.

Bess 307V High Voltage Lithium Battery Modular Energy Storage System

Bess 307V High Voltage Lithium Battery Modular Energy Storage System

Bess 307V High Voltage Lithium Battery Modular Energy Storage System

Specifications :

Battery Specifications
Battery Ptype LiFePO4
Rated voltage range 153.6~358.4V
Rated capacity range 15kwh ~35kwh
Max Charge/Discharge Current 50A/100A
System Performance
Operating Temperature -15°C~55°C
Working Altitude 0-2000m
Waterproof Level IP20
BMS Communication CAN
Electricity CommunicationPort RS485
Cooling Method Cooling Fans
Output Waveform Pure Sine Wave
Switching time 10ms
Max efficiency 98.20%
European efficiency 97.50%
MPPT efficiency 99.5%
Noise Level <35dB
Warranty 5 years
Inverter Specifications
Phase selection Single-phase/Three-phase
Inverter options 8/10/12/15 KW
Inverter voltage range 125~600VA
Grid voltage range 360~440V
PV input power 4KW
Max.PV charge current 80A
AC charge current 60A
Rated output power 10KW
Max DC Input Voltage 1000V
MPPT Work Voltage Range 125~850V
Start Voltage 125V
Rated output voltage 400V,3W+N+PE
Rated frequency(Hz) 50Hz/60Hz
Mechanical Specifications
Inverter dimensions 600*400*850mm
Inverter weight 75.6KG
Battery module dimensions 600*400*200mm
Battery module weight 46.9KG
Base dimensions 600*400*55mm
Base weight 10.8KG
