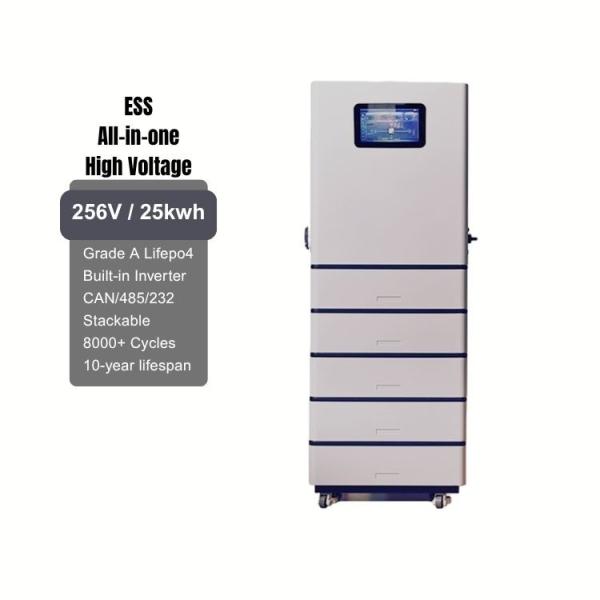

25kwh 256V100AH High Voltage Battery Pack Stackable Lithium Battery Rechargeable
25kwh 256V100AH High Voltage Battery Pack Stackable Lithium Battery Rechargeable
Specifications
Brand Name :
HEYI
Model Number :
256V
Certification :
UN38.3 , MSDS , IS9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD998~4980
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1 GWH
Delivery Time :
10 working days
Packaging Details :
wooden case
Name :
High Voltage Lithium Battery
Rated voltage range :
256V
Energy :
25Kwh
Bms :
Built-in BMS Protection
Case Material :
Metal
Rechargeable :
Yes
Battery Cell :
LifePO4
Application :
Customize by use
Description

250V100AH High Voltage Battery Pack Stackable Lithium Battery

This high-voltage 250V 25kWh lithium energy system offers a compact, stackable design and robust power output. Built with safe LiFePO₄ technology and a built-in inverter, it supports both grid-tied and off-grid setups, making it a smart solution for solar storage, energy backup, or hybrid systems.

25kwh 256V100AH High Voltage Battery Pack Stackable Lithium Battery Rechargeable

All-in-One Stackable Battery Solution
Designed for homes, this system merges high-voltage LiFePO₄ batteries and inverter options into a single modular unit.

Quick Assembly, Mobile Design
Each unit features smooth-rolling casters and a vertical stacking structure for ease of movement and setup.

Advanced Communication Protocols
Seamlessly integrates with solar systems via RS485, CAN, and RS232 interfaces.

Off-Grid or Hybrid Ready
Optimized for a wide range of use cases, from independent solar setups to grid-assisted configurations.

Extended Life Cycle
Utilizing premium lithium cells, this system offers 8000+ cycles and reliable long-term operation.

Flexible Storage Scaling
Configure systems from 5kWh to 35kWh based on energy usage and expansion goals.

Achieve clean, resilient energy storage with our intelligent all-in-one solution.

25kwh 256V100AH High Voltage Battery Pack Stackable Lithium Battery Rechargeable

25kwh 256V100AH High Voltage Battery Pack Stackable Lithium Battery Rechargeable

25kwh 256V100AH High Voltage Battery Pack Stackable Lithium Battery Rechargeable

Specifications :

Battery Specifications
Battery Ptype LiFePO4
Rated voltage range 153.6~358.4V
Rated capacity range 15kwh ~35kwh
Max Charge/Discharge Current 50A/100A
System Performance
Operating Temperature -15°C~55°C
Working Altitude 0-2000m
Waterproof Level IP20
BMS Communication CAN
Electricity CommunicationPort RS485
Cooling Method Cooling Fans
Output Waveform Pure Sine Wave
Switching time 10ms
Max efficiency 98.20%
European efficiency 97.50%
MPPT efficiency 99.5%
Noise Level <35dB
Warranty 5 years
Inverter Specifications
Phase selection Single-phase/Three-phase
Inverter options 8/10/12/15 KW
Inverter voltage range 125~600VA
Grid voltage range 360~440V
PV input power 4KW
Max.PV charge current 80A
AC charge current 60A
Rated output power 10KW
Max DC Input Voltage 1000V
MPPT Work Voltage Range 125~850V
Start Voltage 125V
Rated output voltage 400V,3W+N+PE
Rated frequency(Hz) 50Hz/60Hz
Mechanical Specifications
Inverter dimensions 600*400*850mm
Inverter weight 75.6KG
Battery module dimensions 600*400*200mm
Battery module weight 46.9KG
Base dimensions 600*400*55mm
Base weight 10.8KG

25kwh 256V100AH High Voltage Battery Pack Stackable Lithium Battery Rechargeable

25kwh 256V100AH High Voltage Battery Pack Stackable Lithium Battery Rechargeable

25kwh 256V100AH High Voltage Battery Pack Stackable Lithium Battery Rechargeable
