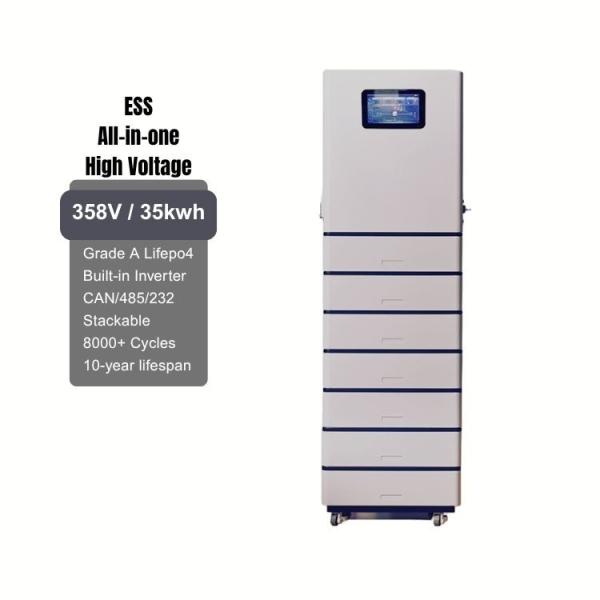

35kwh Battery Energy Storage Systems Bess 358V High Voltage Lithium Batteries
35kwh Battery Energy Storage Systems Bess 358V High Voltage Lithium Batteries
35kwh Battery Energy Storage Systems Bess 358V High Voltage Lithium Batteries
35kwh Battery Energy Storage Systems Bess 358V High Voltage Lithium Batteries
Specifications
Brand Name :
HEYI
Model Number :
307V
Certification :
UN38.3 , MSDS , IS9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD998~4980
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1 GWH
Delivery Time :
10 working days
Packaging Details :
wooden case
Name :
High Voltage Lithium Battery
Rated voltage range :
307V
Energy :
30Kwh
Bms :
Built-in BMS Protection
Case Material :
Metal
Rechargeable :
Yes
Battery Cell :
LifePO4
Application :
Customize by use
Description

35kwh Battery Energy Storage Systems Bess 358V High Voltage Lithium Batteries

Built for scalable energy storage, this 358V 35kWh LiFePO₄ system offers integrated power conversion and intelligent control. With its compact, stackable configuration and safe battery chemistry, it’s perfectly suited for homes, small businesses, or telecom backup—whether on-grid or completely off-grid.

35kwh Battery Energy Storage Systems Bess 358V High Voltage Lithium Batteries

Compact Power for Home Energy Needs
A complete solution combining LiFePO₄ batteries and inverter functionality (up to 15kW), ideal for residential setups.

Stackable & Movable
Innovative stack design with integrated casters makes installation smooth and location flexible.

Smart Integration Ready
Multiple communication ports (RS485, CAN, RS232) allow for easy system control and connection to solar inverters.

Versatile Deployment
Functions in both off-grid and hybrid energy systems.

Long-Term Assurance
High-quality battery cells deliver over 8000 life cycles and include a 10-year warranty.

Modular by Nature
Scalable from 5kWh to 35kWh, adapting easily to changing energy demands.

Smart, space-saving, and powerful—this is energy storage redefined.

35kwh Battery Energy Storage Systems Bess 358V High Voltage Lithium Batteries

35kwh Battery Energy Storage Systems Bess 358V High Voltage Lithium Batteries

35kwh Battery Energy Storage Systems Bess 358V High Voltage Lithium Batteries

Specifications :

Battery Specifications
Battery Ptype LiFePO4
Rated voltage range 153.6~358.4V
Rated capacity range 15kwh ~35kwh
Max Charge/Discharge Current 50A/100A
System Performance
Operating Temperature -15°C~55°C
Working Altitude 0-2000m
Waterproof Level IP20
BMS Communication CAN
Electricity CommunicationPort RS485
Cooling Method Cooling Fans
Output Waveform Pure Sine Wave
Switching time 10ms
Max efficiency 98.20%
European efficiency 97.50%
MPPT efficiency 99.5%
Noise Level <35dB
Warranty 5 years
Inverter Specifications
Phase selection Single-phase/Three-phase
Inverter options 8/10/12/15 KW
Inverter voltage range 125~600VA
Grid voltage range 360~440V
PV input power 4KW
Max.PV charge current 80A
AC charge current 60A
Rated output power 10KW
Max DC Input Voltage 1000V
MPPT Work Voltage Range 125~850V
Start Voltage 125V
Rated output voltage 400V,3W+N+PE
Rated frequency(Hz) 50Hz/60Hz
Mechanical Specifications
Inverter dimensions 600*400*850mm
Inverter weight 75.6KG
Battery module dimensions 600*400*200mm
Battery module weight 46.9KG
Base dimensions 600*400*55mm
Base weight 10.8KG
