Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube
Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube
Specifications
Brand Name :
Herolaser
Model Number :
6020D
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden case
Condition :
New
Laser :
IPG/RECI/MAX
Height tracking sensor :
BCS100
Operation software :
TubePro
Control system :
FSCUT3000S
Cooling system :
Water cooling
Description

6020D Laser Cutting System for Square Tube/Round Tube/Rectangular Tube/Waist Tube/Elliptical Tube/Angle steel/C-shaped

  • Cutting Range of Herolaser ML-P6020D Laser Cutting System

Cutting materials: stainless steel, carbon steel, galvanized steel, copper pipe, aluminum pipe, etc.

Cutting pipe type: Square tube, round tube, rectangular tube, waist tube, elliptical tube, angle steel, c-shaped steel

Cutting pipe diameter:

Round tube: 20 ≤ φ ≤ 220 mm
Square tube: 20 * 20 ≤ □≤ 150 mm
  • Parameters of Herolaser ML-P6020D Laser Cutting System
Machine model: ML-P6020D
Laser: IPG, RECI, MAX
Power: 1500W ~ 20000W
Linear axis speed: 100 m/min
Rotary axis speed: 100 rpm
Pipe circumcircle diameter: Φ20mm~Φ220mm
Material and thickness (1.5KW): stainless steel 4 mm, carbon steel 8 mm (cutting capacity depends on laser power)
Feeding length: ≤ 6300 mm (automatic feeding)
Blanking length: ≤ 2000 mm (with support, the length can be extended)
Residual length: ≥ 110 mm
Max. single tube weight: 40 kg/m
Machine weight: around 6.8 t
Machine size: 11000 x 2300 x 2400 mm
  • Advantages of Herolaser ML-P6020D Laser Cutting System

Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube

Bed structure: horizontal gantry structure, processing technology: whole welding annealing, vibration aging, finishing.

Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube

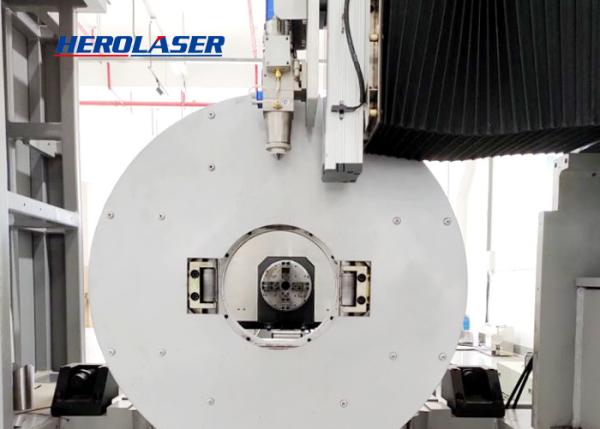

Front and rear chucks: the front chucks are full stroke chucks with small moment of inertia and fast acceleration; The front chuck adopts the side suction mode, and the rear chuck adopts the tail suction mode, so that the dust and smoke in the cutting area are less, and the inner wall of the cutting workpiece is cleaner.

Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube

Feeding support: the support opening degree of fixed roller can be adjusted manually, which is suitable for cutting support requirements of different pipe types and diameters.

Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube

Blanking structure: blanking is a combination of fixed roller and slope sliding.

  • Various Cutting Samples of Herolaser ML-P6020D Laser Cutting System

Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube
