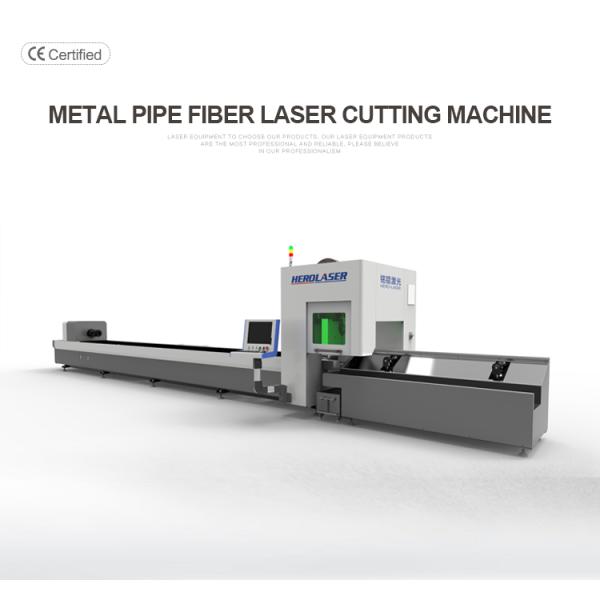

Automatic Feeding Pipe Laser Cutting Machine For Metal Stainless Steel Aluminum
Automatic Feeding Pipe Laser Cutting Machine For Metal Stainless Steel Aluminum
Automatic Feeding Pipe Laser Cutting Machine For Metal Stainless Steel Aluminum
Automatic Feeding Pipe Laser Cutting Machine For Metal Stainless Steel Aluminum
Automatic Feeding Pipe Laser Cutting Machine For Metal Stainless Steel Aluminum
Automatic Feeding Pipe Laser Cutting Machine For Metal Stainless Steel Aluminum
Automatic Feeding Pipe Laser Cutting Machine For Metal Stainless Steel Aluminum
Automatic Feeding Pipe Laser Cutting Machine For Metal Stainless Steel Aluminum
Specifications
Brand Name :
Herolaser
Model Number :
ML-CP-6012D-QX-HW
Certification :
ISO9001, CE
Place of Origin :
China, Shenzhen
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, T/T
Supply Ability :
20 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden case
Laser source :
1500W
Gear and rack :
APEX/YYC
Cutting head :
OSPRI
Pneumatic components :
SMC, AirTAC
Laser wave length :
1070nm
Repeated position accuracy :
≤±0.03mm
Positioning accuracy :
≤±0.05mm
≤±0.05mm :
≤150m/min
Max speed of Y-axis :
≤120m/min
Max speed of Z-axis :
≤65m/min
Power supply :
AC380V±5%50Hz
Dimension size :
11000*2500*2300(mm)
Description

CNC Fiber Laser Cutting Machine For Metal Stainless Steel Aluminum Copper Processing

Automatic Feeding Tube Pipe Cutting Machine For Metal Stainless Steel Aluminum

Parameter
Number
Name
Model
Remark
1
Bed
ML-CP-6012D-QX-HW
Herolaser
2
Feeding system
Manual/automatic feeding (optional)
Herolaser
3
Blanking system
Fixed and adjustable blanking
Herolaser
4
Numerical control system
FRIENDESS
China
5
Chuck
Standard with 2 chucks (full stroke jaw of front chuck)
China
6
Servo system
Fuji Electric
Japan
7
Gear and rack
APEX/YYC
Taiwan China
8
Linear guide rail
HIWIN
Taiwan China
9
Reducer
TOMOGAWA
Japan
10
Laser source
3000W
MAX
11
Cutting head
OSPRI
China
12
Cooling-water machine
Teyu
China
13
Pneumatic components
SMC, AirTAC
Japan/Taiwan China
14
Electrical components
Schneider or equivalent
France
Number
Name
Parameter
1
Model
ML-CP-6020D-BP
2
Laser power
3KW
3
Chuck clamping range
Φ20mm~Φ220mm, □20~□150
4
Maximum single pipe weight
40kg/170kg
5
Feeding length
≤6300mm(automatic feeding)
6
Blanking length
≤2500mm(length customizable)
7
Cutting thickness (related to laser power)
carbon steel≤18mm ；Stainless steel≤8mm； Aluminum≤6mm；Brass≤5mm；
8
Positioning accuracy
≤±0.03mm
9
Repeat accuracy
≤±0.02mm
10
X-axis maximum speed
Y-axis maximum speed
Z-axis maximum speed
B-axis maximum speed
≤100m/min
≤100m/min
≤65m/min
≤100RPM
11
Idle running acceleration
1.0G
12
Power demand
AC220V±5%/50Hz
13
Power consumption
6KW-25KW
14
Dimension
11000*5200*2400(mm)
15
Weight
About 7800KG
16
Graphic file format
dxf
Products Description

Laser cutting uses a high-power density laser beam to quickly heat the material to vaporization temperature and evaporate to form a hole, move the beam to form a slit, so that realize the materials cutting based on this

Herolaser small area high precision cutting machine also achieves high-precision cutting, no tool wear, low heat impact, fast speed, automatic positioning, automatic correction and other functions.

Automatic Feeding Pipe Laser Cutting Machine For Metal Stainless Steel Aluminum
Characteristics

1. High Precision laser cutting machine
Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization
of the materials, strong expandability , and very flexible

2. High-precision host
Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable

3. Laser cutting head
The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure
the cutting efficiency and cutting effect

4. Precise cutting
Realize the precise cutting and nearly without error and the cutting surface is smooth and flat
Pneumatic Chuck - labor saving and production increasing
Pneumatic clamping, large and stable clamping force to ensure high-precision cutting;
Special support frame can avoid pipe sagging and deformation, improve cutting accuracy and prolong the service life of chuck
Automatic Sensing Laser Cutting Head
High idle running acceleration, fast cutting response, and corners are not easy to burn, and the cutting head will not contact the
material surface to ensure the perfection of the workpiece.
Horizontal Gantry Structure
Gear rack and screw combined transmission mode can obtain high stability, good rigidity, light weight and high dynamic response
Technique
1, The shortest tail material is 110mm

2, Very low operation and maintenance costs

3, The laser cutting head will not contact the material surface and will not scratch the workpiece

4, The front chuck maintains the full stroke without changing the claw

5, High speed idle stroke, high acceleration, fast cutting response, not easy to burn corners

6, The rear chuck vacuums at the rear and the front chuck vacuums at the side. The tube wall is cleaner
and there is less cutting dust and smoke

7, The height of the feeding fixed support wheel can be adjusted manually, and the blanking is a
combination of follow-up support and slope sliding

8, High-speed and high-quality laser cutting can be performed on various profiles such as round pipe, square pipe, rectangular
pipe, waist round pipe, angle steel and C-section steel

9, The pipe cutting section is smooth without burr, slag, blackening and yellowing, which can easily
realize the cutting of various complex graphics
Applicable Industry

automobile

machining

oil pipeline

building steel structure

fitness equipment

Medical Equipent
Company Information
ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Certification
Packaging & Shipment
Our Services
---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service
FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
