1500W - 20000W RECI Fiber Laser Tube Cutting Machine
1500W - 20000W RECI Fiber Laser Tube Cutting Machine
Specifications
Brand Name :
Herolaser
Model Number :
6020D
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden case
Machine model :
ML-P6020D
Laser :
IPG/RECI/MAX
Power :
1500W~20000W
Pipe circumcircle diameter :
Φ20mm~Φ220mm
Description

High Efficiency Fiber Laser Tube Cutting Machine (1500W~20000W)

Parameters of Herolaser ML-P6020D Laser Cutting System

Machine model: ML-P6020D
Laser: IPG, RECI, MAX
Power: 1500W ~ 20000W
Linear axis speed: 100 m/min
Rotary axis speed: 100 rpm
Pipe circumcircle diameter: Φ20mm~Φ220mm
Material and thickness (1.5KW): stainless steel 4 mm, carbon steel 8 mm (cutting capacity depends on laser power)
Feeding length: ≤ 6300 mm (automatic feeding)
Blanking length: ≤ 2000 mm (with support, the length can be extended)
Residual length: ≥ 110 mm
Max. single tube weight: 40 kg/m
Machine weight: around 6.8 t
Machine size: 11000 x 2300 x 2400 mm
  • Advantages of Herolaser ML-P6020D Laser Cutting System

1500W - 20000W RECI Fiber Laser Tube Cutting Machine

Bed structure: horizontal gantry structure, processing technology: whole welding annealing, vibration aging, finishing.

1500W - 20000W RECI Fiber Laser Tube Cutting Machine

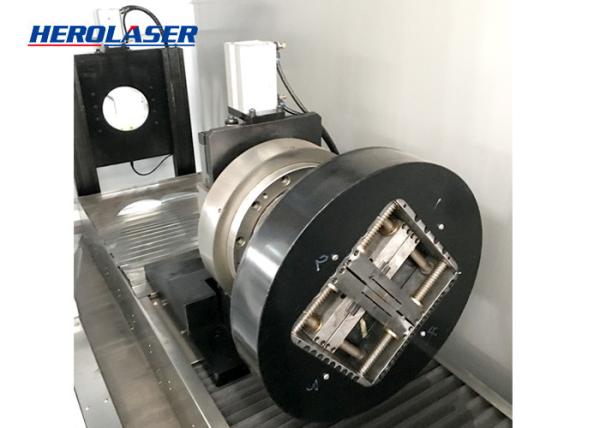

Front and rear chucks: the front chucks are full stroke chucks with small moment of inertia and fast acceleration; The front chuck adopts the side suction mode, and the rear chuck adopts the tail suction mode, so that the dust and smoke in the cutting area are less, and the inner wall of the cutting workpiece is cleaner.

1500W - 20000W RECI Fiber Laser Tube Cutting Machine

Feeding support: the support opening degree of fixed roller can be adjusted manually, which is suitable for cutting support requirements of different pipe types and diameters.

1500W - 20000W RECI Fiber Laser Tube Cutting Machine

Blanking structure: blanking is a combination of fixed roller and slope sliding.

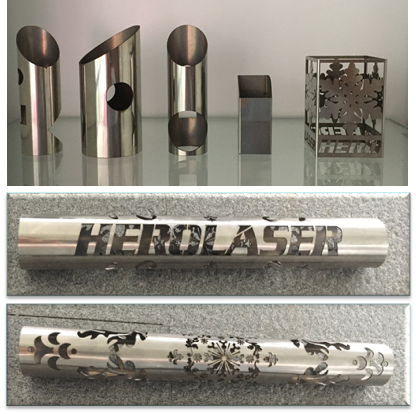

  • Various Cutting Samples of Herolaser ML-P6020D Laser Cutting System

1500W - 20000W RECI Fiber Laser Tube Cutting Machine
