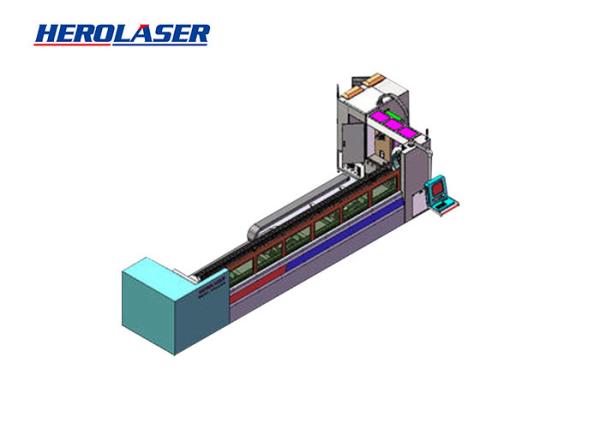

Fully Automatic Model 1500W RECI CNC Tube Cutting Machine Cypcut Control
Fully Automatic Model 1500W RECI CNC Tube Cutting Machine Cypcut Control
Specifications
Brand Name :
Herolaser
Model Number :
6016D
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden case
Cnc or not :
CNC
Automatic or not :
Automatic
Software :
Cypcut
Laser :
IPG/MAX/RECI
Feeding :
Auto
Blanking :
Sliding
Description

6016D CNC Fiber Laser Pipe Cutting Machine MAX/IPG/RECI 1500W-20000W Fully Automatic Model

  • Configuration Parameters
Item Standard /Brand Remark

1

 Machine tool body (Y-axis gear rack drive)

Rail: HIWIN

Rack: YYC

Reducer: Tamagawa, Japan
Beam (X-axis gear strip drive)
Z-axis (Z-axis screw drive)
Chuck (B1/B2 shaft gear drive)

2

Feeding

Automatic feeding;

Fixed support height can be adjusted

Pipe length ≤ 6m
3 Blanking Keep falling down

4

Chuck clamping range

Round tube: 20 ≤ φ ≤ 160(mm)；

Square tube: 20 * 20 ≤ □≤ 140 (mm)
5 Chuck number Front and rear double pneumatic chucks
6 Numerically controlled Professional cutting numerical control software FRIENDESS
7 Height tracking sensor Height tracking control system FRIENDESS
8 Servo system Fuji Electric Japan
9 Operation software Cutting control software FRIENDESS
10 IPC Outsourcing customization
11 Laser IPG/MAX/RECI Power 1.5KW
12 Laser cutting head Empower China
13 Cooling-water machine Teyu China
14 Dedusting and ventilation system Dedusting and ventilation system Well-known brand
15 Pneumatic components SMC, AirTAC, etc. Japan
16 Electrical components Schneider or equivalent France
17
Machine weight		 Around 3.4T Refer to the actual product
18
Machine dimensions		 11000*2300*2400mm Refer to the actual product

  • Technical Specifications
Model ML-CP-6016D-JJ-HW1500
Pipe circumcircle diameter Φ20mm~Φ160mm
Material and thickness (1.5KW) Stainless steel 3 mm, carbon steel 6 mm (cutting capacity depends on laser power)
Cutting pipe type Round tube, square tube and rectangular tube
Feeding length ≤6000mm
Blanking Length ≤2000mm (length can be extended after support)
Length of leftover material ≥170mm
Maximum single tube weight 25KG/M

Y axis

 Working stroke 0～6800mm
Positioning accuracy 0.05mm
Positioning speed 65m/min
Repeat accuracy 0.05mm

X axis

 Working stroke 0～240mm
Positioning accuracy 0.05mm
Positioning speed 65m/min
Repeat accuracy 0.05mm

Z axis

 Working stroke 0～200mm
Positioning speed 30m/min

B1 axis

B2 axis

Infinite rotation

80rpm
